Administration

Wireless M-Bus receiver

The product handles all widely used wireless M-Bus slaves which conforms to the wireless M-Bus standard and/or OMS specifications. Both wireless M-Bus slaves sending installation requests and slaves only sending spontaneous data can be handled.

Installation mode

Installation mode can be started using the display or by issuing M-Bus command on the wired M-Bus slave implementation on the product.

When installation mode is activated, wireless M-Bus slaves sending SND_IR telegrams or SND_NR telegrams are automatically added to the slave list. The product can also be configured to only handle slaves which transmit SND_IR telegrams (installation requests).

Normal operation

Installed wireless M-Bus slaves will be directly readable on the wired M-Bus slave port on the product. Depending on key handling and telegram contents, the information will be available as standard M-Bus data (decrypted and readable) or the data will be put in an M-Bus container, which contains the complete wireless M-Bus telegram received from the meter.

Container settings can be changed in the display or by issuing M-Bus command on the wired M-Bus slave interface.

FAC mode

Currently, the product cannot be used to open an FAC window for bidirectional communication. This is a feature which will be implemented in future releases.

Telegram handling

All telegrams from wireless M-Bus slaves are handled, but are handled differently depending on contents. If a telegram is encrypted or the C and CI-fields are unknown to the product, the telegram is always stored and available as container telegrams on the wired M-Bus interface.

Telegram types listed in Table 243, “Handled C-Fields” and Table 244, “Handled CI-fields for “extended link layer”” received from wireless M-Bus slaves are stored and can be read on the wired M-Bus slave interface with any standard M-Bus software. Only the latest telegram received from a wireless M-Bus slave is stored.

The product also adds an optional information block on the wired M-Bus interface before the actual wireless M-Bus telegram information. The information block added depends on the DIF/VIF mode set.

Table 243. Handled C-Fields

C-Field

Symbolic name

Description

0x44

SND-NR

Send unsolicited/periodical application data from meter without request from master unit (Send /No Reply).

0x46

SND-IR

Manually initiated sending of telegram with request for installation in master unit (Send Installation Request).

0x08, 0x18, 0x28, or 0x38

RSP-UD

Sending of application data after a request from the master (response of user data).


Table 244. Handled CI-fields for “extended link layer”

C-Field

Designation

Description

0x8C

Type I with CC- and ACC-field

Encryption not possible.

0x8D

Type II with CC-, ACC-, SN and PLCRC-field

Encryption type 1 for extended link layer is supported (AES128/CTR).

0x8E

Type III with CC-, ACC-, M2-, and A2-field

Encryption not possible. The fields M2 and A2 are intended for destination address and are presently ignored by the product.

0x8F

Typ IV with CC-, ACC-, M2-, A2-, SN- and PLCRC-field

Encryption type 1 for extended link layer is supported (AES128/CTR). The fields M2 and A2 are intended for destination address and are presently ignored by the product.


Table 245. Handled CI-fields for application data

C-Field

Designation

Description

0x72

Normal data telegram with long application header

Telegram with 12-byte header. Secondary address for the corresponding virtualized meter on wired M-Bus is taken from the ID-field in this header.

0x73

”Compact frame” data telegram with ”long application” header

Same as above.

0x6B

”Compact frame” format telegram with ”long application” header

Same as above.

0x6F

”Application error”-telegram with ”long application” header

Same as above.

0x75

”Alarm”-telegram with ”long application” header

Same as above.

0x7A

Normal data telegram with ”short application” header

Telegram with 4-byte header. Secondary address for the corresponding virtualized meter on wired M-Bus is taken from the ID-field ”Link layer header”.

0x7B

”Compact frame” datatelegram with ”short application” header

Same as above.

0x6A

”Compact frame” format telegram with ” short application” header

Same as above.

0x6E

”Application error”-telegram with ”short application” header

Same as above.

0x74

”Alarm”-telegram with ”short application” header

Same as above.

0x79

”Compact frame” data telegram without header

Ignored or sent in data container on wired M-Bus depending on the setting ”CI=0x79 mode”.

0x69

”Compact frame” format telegram without header

Same as above.

0x78

Normal data telegram without header

Secondary address for the corresponding virtualized meter on wired M-Bus is taken from the ID-field ”Link layer header”.

0xA1

Maddalena water meter with annual periodic reading

This is a special format for Maddalena water meters. The product supports decryption of these telegrams with Maddalena’s own algorithm that uses a 64-bit key. It is the last 8 bytes of installed decryption key (meter specific or global) that are used, the first 8 bytes of the key are ignored and are for example set to 0x00. The secondary address for corresponding virtualized meter on wired M-Bus is taken from the ID-field in ”Link layer header” whose format is not following the standard EN13757-4.

0xA2

Maddalena water meter with monthly periodic reading

Same as above.

0xA3

Maddalena water meter with weekly periodic reading

Same as above.


Wireless M-Bus telegram with no header

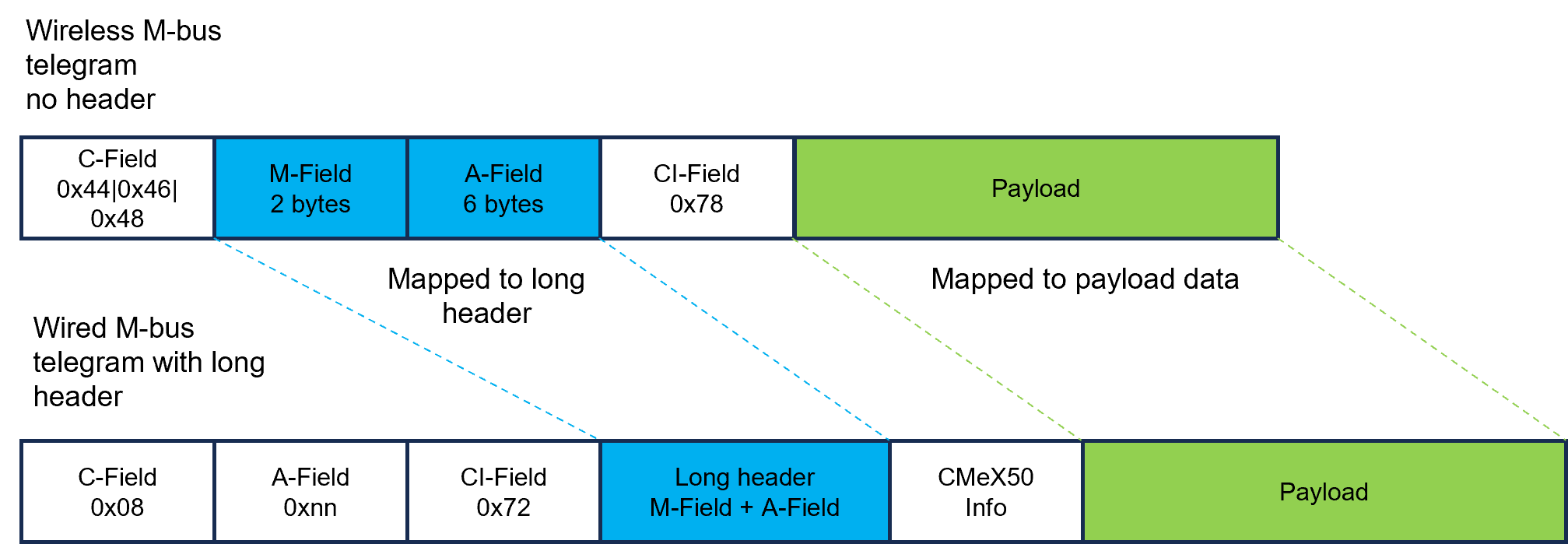

The following image describes how data is mapped from the received wireless M-Bus telegram to the wired M-Bus telegram. The wired secondary address is taken from the M-Field and A-Field from the wireless M-Bus telegram. The wired A-Field is automatically assigned upon installation.


Wireless M-Bus telegram with no header data mapping

Wireless M-Bus telegram with short header

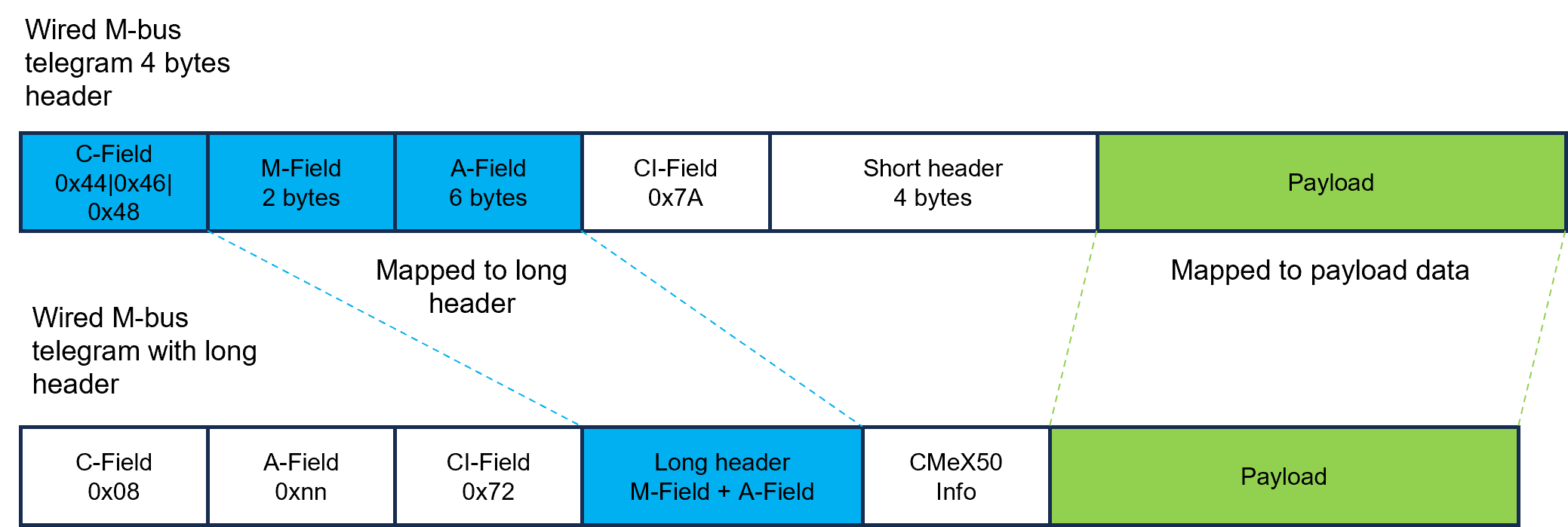

The following image describes how data is mapped from the received wireless M-Bus telegram to the wired M-Bus telegram. The wired secondary address is taken from the M-Field and A-Field from the wireless M-Bus telegram. The wired A-Field is automatically assigned upon installation. The short header information received in the wireless M-Bus telegram is not used on the wired M-Bus interface.


Wireless M-Bus telegram with short header data mapping

Wireless M-Bus telegram with long header

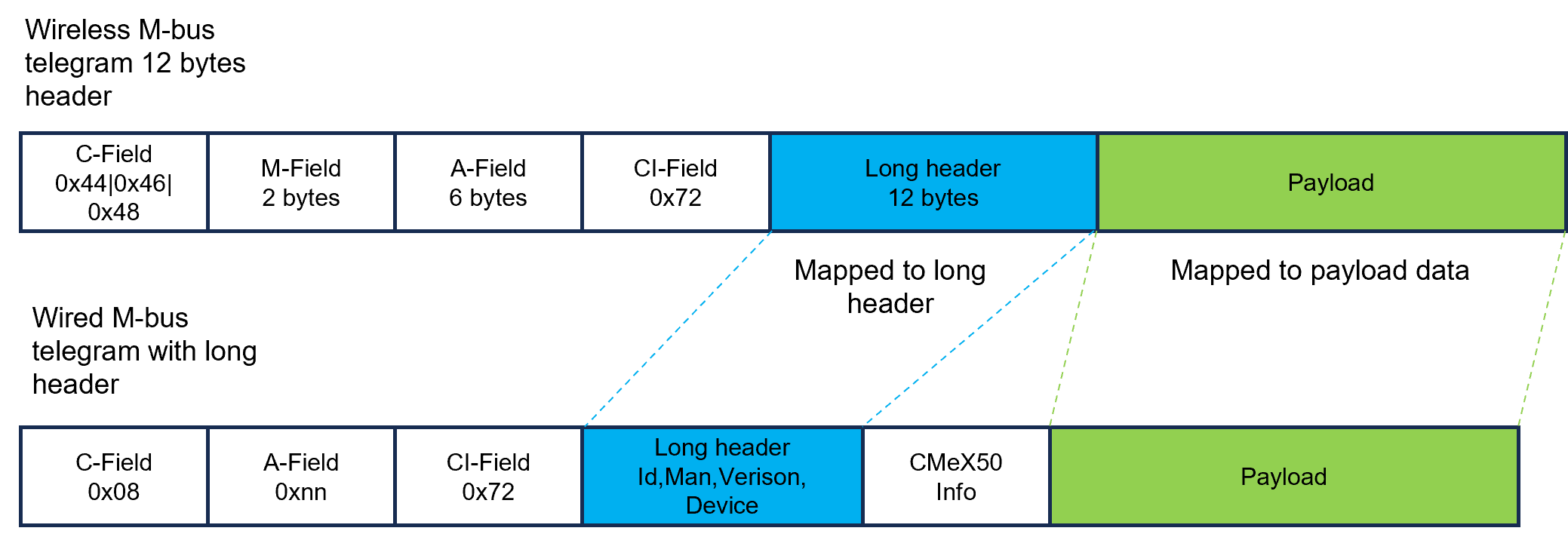

The following image describes how data is mapped from the received wireless M-Bus telegram to the wired M-Bus telegram. The wired secondary address is taken from the long header from the wireless M-Bus telegram. The wired A-Field is automatically assigned upon installation.


Wireless M-Bus telegram with long header data mapping

Wireless M-Bus telegram with extended link layer 0x8C and 0x8D

The actual CI-field contained in the payload data is handled according to previous description of no, short and long header.

Wireless M-Bus telegrams contained in wired M-Bus container

The wireless M-Bus telegram will be placed in an M-Bus container if one or more of the following criteria’s are met:

  • C- and CI-Field are unknown to the product

  • The wireless M-Bus telegram is encrypted and no key is set

  • The wireless M-Bus telegram is encrypted, private or global key is set, but encryption mode is set to “None”

  • The wireless M-Bus telegram is encrypted, wrong key or wrong encryption mode is set

  • The global setting for wired mode is set to “Container”

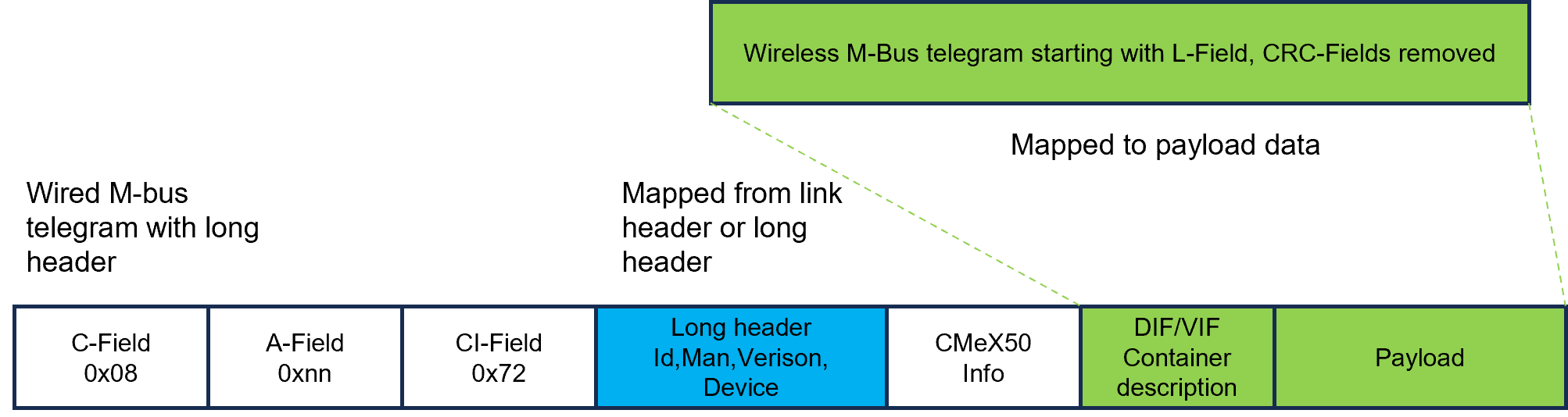

Wireless M-Bus telegram container data mapping

The DIF/VIF Container description is identified by following DIF/VIF data:

0x0D 0xFD 0x3B 0xnn

where 0xnn is the length of the complete wireless M-Bus telegram (length of the container).

Wired M-Bus slave port

The wired M-Bus slave interface of the product is used to read data received from wireless M-Bus slaves and also to read/write configuration of the CMeX50 product.

There are four ports available on the CMeX50: IR-interface, RS232, USB and M-Bus slave port. All ports have the same application layer functionality.

M-Bus product identification

The product can be identified by the following information:

  • Manufacturer string = ELV

  • Medium = 0x31 (OMS MUC)

  • Generation = 01-09

The Generation field between product releases will only change (increase by 1) if the M-Bus protocol information changes between versions. Use the software version field in the M-Bus telegram to identify the current software version.

M-Bus addressing

The product can be addressed using primary or secondary addressing. The secondary address of the product is by default set to the serial number of the product. The secondary address and primary address can be changed on demand using the display or by issuing standard M-Bus commands.

The connected wireless M-Bus slaves are addressed by primary and secondary address. The primary address of the connected slave can be changed, but not the secondary address which is taken from the wireless M-Bus telegram information received from the meter.

Connected wireless M-Bus slaves can also be read using enhanced secondary addressing, which is used when multiple CMeX50 exist on the same 2-wire M-Bus and the same wireless M-Bus slave resides on more than one CMeX50. This avoids possible multiple secondary addresses used on the same 2-wire M-Bus.

M-Bus baud rate

The product can handle 300, 600, 1200, 2400, 4800 and 9600 baud. No auto-baud detection is available. The baud rate can be changed using M-Bus standard commands. Default baud rate is set to 2400 baud.

M-Bus break

M-Bus master break signals are handled according to the M-Bus standard. Any on-going communication from M-Bus slave to master will be aborted on break detection from the M-Bus master.

Collision handling

The CMeX50 will generate a break and garbage data and send to the requesting M-Bus master on a collision between virtualized slaves and/or the CMeX50. In this way the installed M-Bus slaves will behave like any other normal wired M-Bus installation.

FCB-bit toggling (multi-telegram)

Multi-telegram mode, or FCB-bit toggling, is implemented in the product. By toggling the FCB bit with FCV bit set, the CMeX50 will reply with the following information:

Telegram 1: Configuration and status of the CMeX50

Telegram 2..n: Information and status of connected wireless M-Bus slaves

CMeX50 optional information field

The optional information field is included before the actual payload data received from the wireless M-Bus slave. This data is used to give more information about the received telegram. The optional information included depends on the DIF/VIF mode configured.

Table 246. DIF/VIF modes

DIF/VIF mode

Description

Auto address

If the wireless M-Bus telegram is sent in a container on the wired M-Bus interface, the current CMeX50 secondary address will be included.

If the wireless M-Bus telegram is not sent in a container, the current CMeX50 secondary address will not be included.

Address

The current CMeX50 secondary address will be included.

Address, Time

The current CMeX50 secondary address and the age of the received wireless M-Bus telegram will be included.

Address, Time, RSSI

The current CMeX50 secondary address, age and RSSI of the received wireless M-Bus telegram will be included.


Table 247. CMeX50 info data description and coding

CMeX50 info

Description

Address

DIF = 0x0C (8 digit BCD)

VIF = 0x78 (Fabrication number)

Data = 0xnnnnnnnn

Where nnnnnnnn is the current secondary address in packed BCD of the CMeX50 product.

Time

DIF = 0x02 (16 bit integer)

VIF = 0x75 (Actuality duration)

Data = 0xnnnn

Where nnnn is a 16 bit unsigned age in minutes of the received telegram.

RSSI

DIF = 0x01 (8 bit integer)

VIF = 0xFD (RSSI)

VIFE = 0x71 (RSSI)

Data = 0xnn

Where nn is the 8 bit signed RSSI calculated according to the following pattern: Resulting range: -128 ... -6dbm

0xnn in the range 1..62:

2 x 0xnn-130 = Actual RSSI

0xnn = 0 (No RSSI)

0xnn = 1 (-128dBm)

0xnn = 63 (> -6dBm)


Enhanced secondary addressing

The enhanced addressing is useful when multiple CMeX50 are connected to the same wired M-Bus master and one or more wireless M-Bus slaves are installed in multiple CMeX50. When using enhanced addressing, it is possible to address a specific wireless M-Bus slave on a specific CMeX50. Without this possibility, using normal secondary addressing, would result in collisions between the CMeX50 containing the same wireless M-Bus slave.

The enhanced secondary addressing works as a normal secondary address select with included information about the CMeX50 secondary address.

The following figure shows a standard secondary address select telegram.


Secondary select telegram

The following figure shows an enhanced secondary address select telegram. The FAB field is the 4 byte BCD coded secondary address of the CMeX50 to select the slave from. The secondary address of the CMeX50 is default set to the fabrication number of the CMeX50.


Enhanced secondary select telegram

Performing enhanced secondary address search

Performing these steps will avoid possible collisions on the same wireless M-Bus slave which is installed on multiple CMeX50 products.

By using the age and RSSI information received, a filter of which slave to use on which CMeX50 can be obtained to optimize readout time.

  1. Perform a standard secondary search with Dev (Device type or medium) set to the CMeX50 device type (0x31). Fill Man (Manufacturer) and Gen (Generation) fields with wildcards.

  2. After all CMeX50 devices found, perform an enhanced secondary address search on every CMeX50 found. Fill The FAB (Fabrication number) with the CMeX50 secondary address found in step 1.

M-Bus commands

Initialize slave (SND_NKE)

Table 248. Master to slave

Byte index

Data

Description

0

0x10

Start character

1

0x40

C-Field = SND_NKE

2

0xnn

A-Field = Address of slave

3

0xnn

Checksum

4

0x16

Stop character


Request user data (REQ_UD2)

Request user data from product or virtualized M-Bus slave and wait for slave response.

Table 250. Master to slave

Byte index

Data

Description

0

0x10

Start character

1

0x4b | 0x5b | 0x6b | 0x7b

C-Field = REQ_UD2

2

0xnn

A-Field = Address of slave

3

0xnn

Checksum

4

0x16

Stop character


Slave to master (CMeX50 product addressed) – Telegram 1

The first telegram of the CMeX50 contains information and configuration of the product.

Values that are longer than one byte are always sent with least significant byte (LSByte) first. This also applies to text strings that are sent ”backwards”. The only exception is the encryption keys that are sent in the same order they are written and shown on the LCD-display.

Values formatted as ”packed BCD” are also sent with LSByte first, but MSNibble (bit 7..4) contains the most significant of the two numbers in each byte.

Unless otherwise indicated, all numerical values are without signs, i.e. positive (unsigned).

Table 251. Slave to master (CMeX50 product addressed) – Telegram 1

Byte index

Data

Description

0

0x68

Start 1

1

0xnn

L-field 1

2

0xnn

L-field 2 = L-field 1

3

0x68

Start 2

4

0x08

C-field = RSP-UD

5

0xnn

A-field = CMeX50 primary address

6

0x72

CI-field = 12-byte header follows

7-10

0xnn 0xnn 0xnn 0xnn

ID-field = CMeX50 secondary address, packed BCD

11-12

0x96 0x15

MFR-field = 0x1596 = ”ELV”

13

0xnn

VER-field, 0x01..0x09

14

0x31

DEV-field = 0x31 = ”OMS MUC”

15

0xnn

ACC-field, continuous counter 0.00..0xFF, 0x00..

16

0x00

STATUS-field, always 0x00 in this telegram

17-18

0x00 0x00

SIGNATURE-field, always 0x0000 in this telegram

19-24

0x0C 0x78 0xnn 0xnn 0xnn 0xnn

CMeX50 serial number, 8 digits packed BCD

25-33

0x0D 0xFD 0x0F 0x05

0xnn 0xnn 0xnn 0xnn 0xnn

CMeX50 program version, 5 digits ASCII-text. Example: 0x35 0x2E 0x36 0x2E 0x31 in transmit order ”1.6.5” which means MajorVersion=1, MinorVersion=6, PatchLevel=5

34-56

0x0D 0x7C 0x03 0x79 0x65 0x6B

0x10 0xnn 0xnn 0xnn 0xnn 0xnn

0xnn 0xnn 0xnn 0xnn 0xnn 0xnn

0xnn 0xnn 0xnn 0xnn 0xnn

Global AES128 key for decryption of telegram (0x79 0x65 0x6B = 'key' backwards)

57-63

0x01 0x7C 0x03 0x6F 0x6D 0x77

0xnn

0xnn = wireless M-Bus mode:

0x00 = S1

0x02 = T1

0x04 = T1 + C1a + C1b

0x06 = C1a

0x07 = C1b

0x08 = C1a + C1b

0x09 = T1 + C1a

0x0A = T1 +C1b

0x0B = C1a WIDE

0x0C = C1b WIDE

0x0D = C1a + C1b WIDE

(0x6F 0x6D 0x77 = 'wmo' backwards, wireless mode)

64-70

0x01 0x7C 0x03 0x65 0x73 0x77

0x00

This data field is no longer used, but is still transmitted due to compatibility reasons

(0x65 0x73 0x77 = 'wse' backwards, wireless sensitivity)

71-78

0x02 0x7C 0x03 0x74 0x69 0x77 0xnn 0xnn

Installation time, 0xnnnn minutes.

Allowed area 0..9999 minutes.

(0x74 0x69 0x77 = 'wit' backwards, wireless installation time)

79-86

0x02 0x7C 0x03 0x73 0x69 0x77 0xnn 0xnn

Continued installation time, 0xnnnn minutes.

(0x73 0x69 0x77 = 'wis' backwards, wireless installation something...)

87-93

0x01 0x7C 0x03 0x6D 0x69 0x77 0xnn

0xnn = Wireless installation mode:

0x00 = Only SND-IR-telegram can install meters.

0x01 = All allowed telegram types can install meters.

(0x6D 0x69 0x77 = 'wim', wireless installation mode)

94-101

0x02 0x7C 0x03 0x65 0x67 0x61 0xnn 0xnn

0xnnnn = Time limit for wireless telegram in minutes. Allowed interval is 0 .. 9999 minutes. A virtual M-Bus slave will stop answering on wired M-Bus if the latest stored telegram from the corresponding wireless slave is older than this value.

(0x65 0x67 0x61 = 'age' backwards)

102-111

0x04 0x7C 0x03 0x66 0x69 0x77 0xnn 0xnn 0xgg 0xgg

0xnnnn = Installation filter for manufacturer code:

0xFFFF = The filter is off. Meters from all manufacturers can be installed.

Other values than 0xFFFF = only meters with the specific manufacturer code can be installed.

0xgggg = Installation filter for DEV (meter type):

0xFFFF = The filter is off. All meter types can be installed.

0x0000..0x00FF = Only the selected meter type can be installed (DEV = 0x00..0xFF).

(0x66 0x69 0x77 = 'wif' backwards, wireless installation filter)

112-118

0x01 0x7C 0x03 0x69 0x63 0x77 0xnn

0xnn = Setup for continuous installation mode:

0x00 = Only time limit installation

0x01 = Continuous mode is activated

(0x69 0x63 0x77 = 'wci' backwards, wireless continuous installation)

119-125

0x01 0x7C 0x03 0x6F 0x6D 0x74 0xnn

0xnn = Packing method or telegram:

0x00 = Automatic, wireless telegrams are repacked to simulate virtual wired M-Bus slaves if possible. At decryption error, wireless telegrams without header, unknown CI-code, etc, the telegram will automatically be placed untouched in a data container.

0x01 = All wireless telegrams are placed in a data container.

(0x6F 0x6D 0x74 = 'tmo' backwards, wire-mode (!))

126-132

0x01 0x7C 0x03 0x66 0x64 0x74 0xnn

0xnn = DIF/VIF-mode:

0x00 = Auto

0x01 = Serial number

0x02 = Serial number, age

0x03 = Serial number, age, RSSI (signal strength)

(0x66 0x64 0x74 = 'tdf' backwards, !)

133-139

0x01 0x7C 0x03 0x64 0x63 0x6C 0xnn

0xnn = LCD-contrast, offset from standard settings, 8-bits value with sign. Allowed area is -10 (brightest) to +10 (darkest).

(0x64 0x63 0x6C = 'lcd' backwards)

140-146

0x01 0x7C 0x03 0x6E 0x61 0x6C 0xnn

0xnn = Code for language on the LCD menu:

0x00 = English

0x01 = Swedish

0x02 = German

(0x6E 0x61 0x6C = 'lan' backwards)

147-153

0x01 0x7C 0x03 0x65 0x6C 0x73 0xnn

0xnn = Time from latest tangent activity until CMeX50 goes to sleep mode. Allowed values are 0x00..0xFF (0..255) minutes.

(0x65 0x6C 0x73 = 'sle' backwards, sleep)

154-158

0x0A 0xFD 0x16 0xnn 0xnn

0xnnnn = Password for login to LCD-menu, four digits, packed BCD.

159-165

0x04 0xFD 0x0B 0xnn 0xnn 0xnn 0xnn

0xnnnnnnnn = Tag for user configuration, 32-bits binary.

This value can be written to the CMeX50 to indicate a specific configuration ID. The value is reset when changes are made in the LCD menu.

166-173

0x02 0x7C 0x03 0x61 0x66 0x77 0xnn 0xnn

0xnnnn = Fine-tuning of the radio frequency, in steps of 38,147Hz. 16-bits value with sign.

Example:

0x0000 = No adjustment

0x0069 = +105 that gives +105*38,147Hz = +4kHz

0xFF07 = -249 that gives -249*38,147Hz = -9,5kHz

(0x61 0x66 0x77 = 'wfa' backwards, wireless frequency adjustment)

174-180

0x01 0x7C 0x03 0x66 0x69 0x61 0xnn

0xnn = FIFO-mode for automatic installation:

0x00 = FIFO-mode off. Installation of new meters stops when the meter list is full (800 meters).

0x01 = FIFO-mode is on. If CMeX50 is in continuous installation mode and a telegram from a new meter is received when the meter list is full, the meter with the oldest telegram will be deleted, and the new meter will be installed.

(0x66 0x69 0x61 = 'aif' backwards, autoinstall fifo)

181-190

0x04 0x7C 0x03 0x63 0x72 0x72 0xnn 0xnn 0xnn 0xnn

0xnnnnnnnn = Number of times the radio has been rebooted, due to no accurate telegram has been received the last 30 minutes. 32-bits binary value.

(0x63 0x72 0x72 = 'rrc' backwards, radio restart counter)

191-197

0x01 0x7C 0x03 0x61 0x74 0x73 0xnn

0xnn = Setup for STATUS-byte in telegram from virtualized meters:

0x00 = STATUS is always 0x00

0x01 = STATUS copied from corresponding meters STATUS-byte, if that exists. (assumed that the wireless telegram has a short or long application header) otherwise it will be set to 0x00.

(0x61 0x74 0x73 = 'sta' backwards, status)

198-204

0x01 0x7C 0x03 0x6D 0x61 0x63 0xnn

0xnn = Addressing settings for CMex50:

0x00 = Chosen primary address, secondary address and fixed primary address 251.

0x01 = Only the fixed primary address 251.

(0x6D 0x61 0x63 = 'cam' backwards, collector access mode)

205-211

0x01 0x7C 0x03 0x6D 0x61 0x6D 0xnn

0xnn = Addressing settings for virtualized meters:

0x00 = Primary address, secondary address and enhanced secondary address (with CMeX50 ”fabrication number”).

0x01 = Only enhanced secondary address (with CMeX50 ”fabrication number”).

(0x6D 0x61 0x6D = 'mam' backwards(!), meter access mode)

212-218

0x01 0x7C 0x03 0x66 0x63 0x69 0xnn

0xnn = Action to take when receiving a telegram with CI = 0x79 or 0x69:

0x00 = Ignore telegram.

0x01 = Place telegram in a container.

(0x66 0x63 0x69 = 'icf' backwards, ignore c… flag)

219

0xnn

0xnn = End sign for first telegram from CMeX50:

0x0F = Telegram is finished (no meters are installed)

0x1F = Telegram continues with meter information. Toggle FCB-bit to fetch the next telegram part.


Slave to master (CMeX50 product addressed) – Telegram 2..n

2nd and possible more telegrams, depending on number of connected wireless M-Bus slaves, contain information about the installed wireless M-Bus slaves.

Table 252. Slave to master (CMeX50 product addressed) – Telegram 2..n

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-Field 1

2

0xnn

L-Field 2

3

0x68

Start character 2

4

0x08

RSP_UD

5

0xnn

A-Field = Primary address of CMeX50

6

0x72

Variable data respond, mode 1 = LSByte first

7-10

0xnnnnnnnn

Secondary address of CMeX50

11-12

0x9615

Manufacturer id “ELV”

13

0xnn

Generation field

In the range from 01 to 09.

14

0x31

Device type / medium = OMS MUC

15

0xnn

Access number

16

0xnn

Status byte

0x00 = Ok (no error)

17-18

0x0000

Signature, 16 bit binary

19-58

[SLAVE INFO 1]

Wireless M-Bus slave 1

59-98

[SLAVE INFO 2]

Wireless M-Bus slave 2

99-

[SLAVE INFO n]

Wireless M-Bus slave n

-

0x0F or 0x1F

End of telegram

More data available: 0x1F

No more data available: 0x0F

-

0xnn

Checksum

-

0x16

Stop character

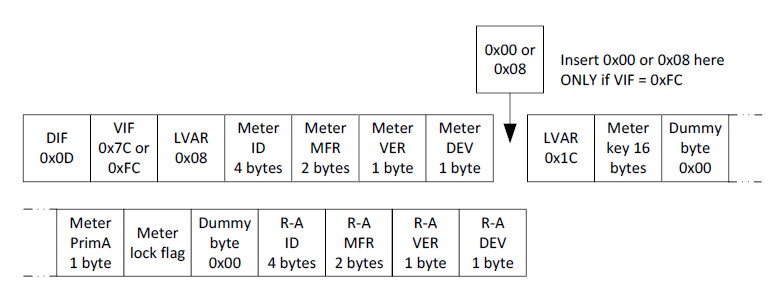

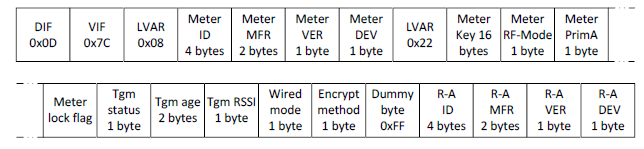

Wireless slave info description

Table 253. M-Bus slave information field description

Name

Description

Meter ID

Wireless M-Bus meter identification

Meter MFR

Wireless M-Bus meter manufacturer code

Meter VER

Wireless M-Bus meter version (generation)

Meter Dev

Wireless M-Bus meter device type (medium)

Meter Key

AES128 encryption key used for this meter (if not CMeX50 global key is used)

Meter RF mode

Wireless M-Bus meter RF mode (S1, T1, C1)

Meter PrimA

Virtual primary address of this meter on CMeX50 wired M-Bus interface

Meter lock flag

Meter lock flag (valid for continuous installation FIFO mode only)

0x00 = Meter is not locked (meter may be replaced by another when meter list is full)

0x01 = Meter is locked (meter will not be erased even if the meter list is full)

Tgm status

Status of last received telegram from this meter:

0x00 = No telegram received yet

0x01 = Last telegram was unencrypted

0x02 = Last telegram had an unknown CI field

0x03 = Last telegram was unmodified and put in container

0x04 = Decryption of last telegram failed

0x05 = Last telegram was successfully decrypted

Tgm age

Age of last received telegram from this meter in minutes

Tgm RSSI

RSSI of last received telegram from this meter

Wired mode

Wired M-Bus mode setting for this meter:

0x00 = Auto (put in container only if necessary, for example if CI is unknown etc.)

0x01 = Always put telegram in container

Dummy

Always 0xFF

R-A ID

Radio adapter ID (ignore if meter address = radio address)

R-A MFR

Radio adapter manufacturer code (ignore if meter address = radio address)

R-A VER

Radio adapter version (generation) (ignore if meter address = radio address)

R-A DEV

Radio adapter device type (medium) (ignore if meter address = radio address)


Slave to master (virtualized M-Bus slave addressed) – Telegram 1 and 2

Table 254. Virtualized M-Bus slave data with no encapsulation in a container

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-Field 1

2

0xnn

L-Field 2

3

0x68

Start character 2

4

0x08

RSP_UD

5

0xnn

A-Field = Primary address of virtualized M-Bus slave

6

0x72

Variable data respond, mode 1 = LSByte first

7-10

0xnnnnnnnn

Secondary address of virtualized M-Bus slave

11-12

0xnnnn

Manufacturer id of virtualized M-Bus slave

13

0xnn

Generation field of virtualized M-Bus slave

14

0xnn

Device type / medium of virtualized M-Bus slave

15

0xnn

Access number of virtualized M-Bus slave

16

0xnn

Status byte of virtualized M-Bus slave

0x00 = Ok (no error)

17-18

0x0000

Signature, 16 bit binary

Optional CMeX50 information depending DIF/VIF mode

19..N

Wireless M-Bus slave payload data

N+1

0x0F or 0x1F

End of telegram

More data available: 0x1F

No more data available: 0x0F

N+2

0xnn

Checksum

N+3

0x16

Stop character


Table 255. Virtualized M-Bus slave data with encapsulation in a container

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-Field 1

2

0xnn

L-Field 2

3

0x68

Start character 2

4

0x08

RSP_UD

5

0xnn

A-Field = Primary address of virtualized M-Bus slave

6

0x72

Variable data respond, mode 1 = LSByte first

7-10

0xnnnnnnnn

Secondary address of virtualized M-Bus slave

11-12

0xnnnn

Manufacturer id of virtualized M-Bus slave

13

0xnn

Generation field of virtualized M-Bus slave

14

0xnn

Device type / medium of virtualized M-Bus slave

15

0xnn

Access number of virtualized M-Bus slave

16

0xnn

Status byte of virtualized M-Bus slave

0x00 = Ok (no error)

17-18

0x0000

Signature, 16 bit binary

Optional CMeX50 information depending DIF/VIF mode

19

0x0d

DIF Variable data length

20

0xfd

VIF Extension table FD

21

0x3b

VIFE Wireless M-Bus container

22

0xnn

Length of container

23..N

Wireless M-Bus slave complete telegram.

Starting with L-Field. CRC fields are left out.

N+1

0x0F or 0x1F

End of telegram

More data available: 0x1F

No more data available: 0x0F

N+2

0xnn

Checksum

N+3

0x16

Stop character


Choose type of STATUS byte in telegram from virtualized slave on wired M-Bus

Table 256. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-13 (14)

0x01 0x7C 0x03 0x61 0x74 0x73 0xnn

OR

0x01 0xFC 0x03 0x61 0x74 0x73 0x00 0xnn

0xnn = setting for STATUS byte in telegram from virtualized meters:

0x00 = STATUS is always 0x00

0x01 = STATUS is copied from the corresponding wireless meter’s STATUS byte if available (assuming that the wireless telegram has long or short application header) otherwise it is set to 0x00

(0x61 0x74 0x73 = 'sta' backwards)

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Choose addressing method for the product (CMeX50) on wired M-Bus

Table 258. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-13 (14)

0x01 0x7C 0x03 0x6D 0x61 0x63 0xnn

OR

0x01 0xFC 0x03 0x6D 0x61 0x63 0x00 0xnn

0xnn = Addressing mode for CMeX50:

0x00 = Chosen primary address, secondary address and fixed primary address 251.

0x01 = Only the fixed primary address 251.

(0x6D 0x61 0x63 = 'cam' backwards)

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Choose addressing method for virtualized meter on wired M-Bus

Table 260. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-13 (14)

0x01 0x7C 0x03 0x6D 0x61 0x6D 0xnn

OR

0x01 0xFC 0x03 0x6D 0x61 0x6D 0x00 0xnn

0xnn = Addressing mode for virtualized meters:

0x00 = Primary address, secondary address and enhanced secondary address (with CMeX50 fabrication number).

0x01 = Only enhanced secondary address (with CMeX50 fabrication number).

(0x6D 0x61 0x6D = 'mam')

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Choose installation method for continuous meter installation

Table 262. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-13 (14)

0x01 0x7C 0x03 0x66 0x69 0x61 0xnn

OR

0x01 0xFC 0x03 0x66 0x69 0x61 0x00 0xnn

0xnn = FIFO-mode for automatic installation:

0x00 = FIFO-mode off. Installation of new meters stops when the meter list gets full (800 meters).

0x01 = FIFO-mode is on. If CMeX50 is in continuous installation mode and a telegram from a new meter is received when the meter list is full, the meter with the oldest stored telegram will be erased from the meter list and the new meter will be installed in its place.

(0x66 0x69 0x61 = 'aif' backwards)

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set filter for meter installation

Table 264. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-16 (17)

0x04 0x7C 0x03 0x66 0x69 0x77 0xnn 0xnn 0xgg 0xgg

OR

0x04 0x7C 0x03 0x66 0x69 0x77 0x00 0xnn 0xnn 0xgg 0xgg

0xnnnn = Installation filter for manufacturer code:

0xFFFF = The filter is closed. Meters from all manufacturers can be installed.

Other value than 0xFFFF = Only meters with the specified manufacturer code can be installed.

0xgggg = Installation filter for DEV (meter type):

0xFFFF = The filter is closed. All meter types can be installed.

0x0000..0x00FF = Only specified meter type can be installed (DEV = 0x00..0xFF).

(0x66 0x69 0x77 = 'wif' backwards, wireless installation filter)

17 (18)

0xnn

Checksum

18 (19)

0x16

Stop character


Start continuous meter installation

Table 266. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-13 (14)

0x01 0x7C 0x03 0x69 0x63 0x77 0x01

OR

0x01 0xFC 0x03 0x69 0x63 0x77 0x00 0x01

Continuous installation is started.

The installation can be stopped with the command ”Start/stop installation mode”.

(0x69 0x63 0x77 = 'wci' backwards)

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Choose how telegram with CI=0x79 / 0x69 shall be handled

Table 268. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-field = primary address, e.g. 0xFB = 251

6

0x51

CI-field = Master to slave data transmission

7-13 (14)

0x01 0x7C 0x03 0x66 0x63 0x69 0xnn

OR

0x01 0xFC 0x03 0x66 0x63 0x69 0x00 0x01

0xnn = action upon receiving telegrams with CI = 0x79 or 0x69:

0x00 = Ignore the telegram.

0x01 = Place the telegram in a data container.

(0x66 0x63 0x69 = 'icf' backwards)

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set baud rate

Set baud rate of slave.

This command only changes the local baud rate if the CMeX50 product is addressed.

Table 270. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0x03

L-field 1

2

0x03

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0xnn

CI-Field = Baud rate selection code:

0xb8 = 300 baud

0xb9 = 600 baud

0xbA = 1200 baud

0xbb = 2400 baud

0xbc = 4800 baud (note 1)

0xbd = 9600 baud (note 1)

0xbe = no change (note 2)

0xbf = no change (note 2)

Baud rates > 2400 baud do work but have not been tested to comply with the timing specifications in the M-Bus standard.

Baud rate codes 0xbe and 0xbf are ACKed with 0xe5 although they do not change the baud rate (this is in accordance with the M-Bus specification).

7

0xnn

Checksum

8

0x16

Stop character


Application reset

Sending application reset address to the CMeX50 product will reset the product to factory default settings.

Application reset sent to any virtualized M-Bus slave will only be acknowledged with no action taken.

Table 272. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0x04

L-field 1

2

0x04

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x50

CI-Field = Application reset

7

0xb0

Application reset sub-code

8

0xnn

Checksum

9

0x16

Stop character


Set primary address

Change M-Bus primary address of the CMeX50 product or any virtualized M-Bus slave.

Table 274. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0x06

L-field 1

2

0x06

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field

7

0x01

Primary address DIF

8

0x7A

Primary address VIF

9

0xnn

New primary address (0x00-0xfa)

10

0xnn

Checksum

11

0x16

Stop character


Set secondary address

This command only changes the secondary address of the CMeX50 if the CMeX50 product is addressed.

Setting secondary address on any virtualized M-Bus slave will only be acknowledged with no action taken.

Table 276. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0x09

L-field 1

2

0x09

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field

7

0x0c

Secondary address DIF

8

0x79

Secondary address VIF

9-12

0xnnnnnnnn

New secondary address, 8-bit packed BCD

13

0xnn

Checksum

14

0x16

Stop character


Select slave

Select slave for further secondary addressing. After successful selection, the slave can be addressed using primary address 253.

Table 278. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

Variable depending on selection mask.

The selection mask can have any size in the range 0..8 bytes except 5 (manufacturer id requires a full 16-bit mask).

2

0xnn

L-field 2

Variable depending on selection mask.

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x52

CI-Field = Slave selection

The slave will be deselected if there is any mismatch.

7-10

0xnnnnnnnn

Optional

M-Bus secondary address mask, packed BCD

The M-Bus ID mask can use the nibble 0xf as a wildcard in any of the eight BCD digit positions.

11-12

0xnnnn

Optional

M-Bus manufacturer id mask, 16-bit binary

The M-Bus manufacturer id mask can use 0xff as wildcard for one or both bytes.

13

0xnn

Optional

M-Bus generation mask, 8-bit binary

The M-Bus generation mask can use 0xff as wildcard.

14

0xnn

Optional

M-Bus medium mask, 8-bit binary

The M-Bus meter medium mask will match if 0x00 ("unknown") or 0xff (wildcard).

15

0x0c

Optional

DIF 8 digit packet BCD

16

0x78

Optional

VIF Fabrication number

17-20

0xnnnnnnnn

Optional

CMeX50 M-Bus secondary address mask, packed BCD

21

0xnn

Checksum

22

0x16

Stop character


Set global AES128 key

The global AES128 key is useful when more than one wireless M-Bus slave has identical AES128 key. Set the wireless M-Bus slave Decryption mode to Global when the global AES128 key should be used.

Table 280. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-35 (36)

0x0D7C0379656B10[KEY]

OR

0x0DFC0379656B1000[KEY]

Write global AES128 key

[KEY] = 16 bytes global AES128 key

35 (36)

0xnn

Checksum

36 (37)

0x16

Stop character


Set wireless M-Bus mode

The wireless M-Bus mode is used to set which wireless M-Bus slaves the product will handle; C1, T1, S1 a combination.

Table 282. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x017C036f6d77nn

OR

0x01FC036f6d7700nn

Write wireless M-Bus mode

nn = 8 bit unsigned wireless M-Bus mode. Valid values:

0x00 or 0x01 = S1 (both values are equivalent)

0x02 or 0x03 = T1 (both values are equivalent)

0x04 or 0x05 = T1 + C1a + C1b

0x06 = C1a

0x07 = C1b

0x08 = C1a + C1b

0x09 = T1 + C1a

0x0A = T1 + C1b

0x0B = C1a WIDE

0x0C = C1b WIDE

0x0D = C1a + C1b WIDE

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set wireless installation time

The installation time is the time the product will be in installation mode after an installation is started.

Table 284. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-14 (15)

0x027C03746977nnnn

OR

0x02FC0374697700nnnn

Write wireless installation time

nnnn = 16-bit unsigned installation time in minutes

Valid interval: 0..9999

15 (16)

0xnn

Checksum

16 (17)

0x16

Stop character


Start/stop installation mode

This command is used to start or stop an installation window.

Table 286. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-14 (15)

0x027C03746977nnnn

OR

0x02FC0374697700nnnn

Start/stop installation window

nnnn = 16 bit unsigned installation time in minutes.

Valid range: 0..9999

Setting nnnn to zero will stop current installation.

15 (16)

0xnn

Checksum

16 (17)

0x16

Stop character


Set wireless installation mode

The wireless installation mode is used to filter which wireless M-Bus telegrams are accepted to install a new wireless M-Bus slave in the product.

Table 288. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x017C036D6977nn

OR

0x01FC036D697700nn

Write wireless installation mode

nn = 8 bit unsigned installation mode

Valid values:

0 = Only SND-IR telegrams are valid for installation of wireless M-Bus slaves

1 = SND-NR, SND-IR are valid for installation of wireless M-Bus slaves

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set wireless age limit

The wireless age limit is used to mark wireless M-Bus slave telegrams as old, resulting in that the virtualized wired M-Bus slave will stop responding when telegrams are outside the wireless age limit. This is useful to indicate that the connection with the wireless M-Bus slave is not working properly.

Table 290. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-14 (15)

0x027C03656761nnnn

OR

0x02FC0365676100nnnn

Write wireless age limit

nnnn = 16 bit unsigned wireless age limit in minutes

Valid rage: 0..9999 minutes

15 (16)

0xnn

Checksum

16 (17)

0x16

Stop character


Set wired M-Bus mode

Set how wired M-Bus interface will transport information to requesting M-Bus master; Auto or in Container mode. The Auto mode will try to transport the data to requesting M-Bus master as unmanaged data received from the wireless M-Bus slave. The Container mode will encapsulate the complete wireless M-Bus telegram in a container. The Container mode can be useful if key handling (decryption of telegrams), should be handled centralized and not within the CMeX50.

Table 292. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x017C036f6d74nn

OR

0x01FC036f6d74nn

Write wired M-Bus mode

nn = 8 bit unsigned wired M-Bus mode

Valid values:

0 = Auto

1 = Container

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set wired M-Bus DIF/VIF mode

Wired DIF/VIF mode is used to configure optional data added by the CMeX50 on the wired M-Bus interface. The information from the CMeX50 can be address information, age of telegram and RSSI (signal strength) information.

Table 294. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x017C03666474nn

OR

0x01FC0366647400nn

Write wired M-Bus DIF/VIF mode

nn = 8 bit unsigned wired M-Bus DIF/VIF mode

Valid values:

0 = Auto

1 = Fabrication number

2 = Fabrication number, age

3 = Fabrication number, age, RSSI

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set LCD contrast

Set the display LCD contrast on the product.

Table 296. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x017C0364636Cnn

OR

0x01FC0364636C00nn

Write LCD contrast

nn = 8 bit signed LCD contrast offset.

Valid range: -10 (brightest) .. +10 (darkest)

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set language

Set the LCD display language.

Table 298. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x017C036E616Cnn

OR

0x01FC036E616Cnn

Write language

nn = 8 bit unsigned language

Valid values:

0 = English

1 = Swedish

2 = German

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Set sleep mode time

Set the time before the product enters sleep mode when no user interaction has been taken place in the LCD menu. The user needs to enter the 4 digit password in the LCD menu to be able to continue configuration of the product.

Table 300. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-14 (15)

0x017C03656C73nn

OR

0x01FC036E616Cnn

Write sleep mode time

nn = 8 bit unsigned sleep mode in minutes.

Valid range: 0..255

15 (16)

0xnn

Checksum

16 (17)

0x16

Stop character


Set LCD menu password

Set the LCD menu password which needs to be entered to access the LCD menu. The default password is 0000.

Table 302. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-14 (15)

0x0AFD16nnnn

OR

0x0AFD1600nnnn

Write LCD menu password

nnnn = 4 digit packed BCD password

15 (16)

0xnn

Checksum

16 (17)

0x16

Stop character


Delete meter

Delete one or all installed meters from the product.

Table 304. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-15 (16)

0x0DFC08[ADDR]09

Delete one or all meters from the product.

[ADDR] = 8 byte wireless M-Bus address

Valid values:

0xFFFFFFFFFFFFFFFF = Delete all

OR

The corresponding 8-byte wireless M-Bus address of the meter to delete:

ID 4 bytes

Man 2 bytes

Gen 1 byte

Dev 1 byte

16 (17)

0xnn

Checksum

17 (18)

0x16

Stop character


Add/update meter

Add or update an existing meter in the product meter list.

Layout of ADD_METER_INFO


Meter and R-A fields

The following additions apply when adding/updating a meter:

  • Set meter PrimA = 0xFF to avoid updating it.

  • Set all 16 bytes of meter key to 0xFF to avoid updating it.

  • Meter lock flag:

    • 0x00 = Meter is not locked in meter list.

    • 0x01 = Meter is locked (erase protected in continuous installation FIFO mode)

    • 0xFF = Avoid updating meter lock flag (keep current settings)

  • Set all R-A fields (8 bytes) to 0xFF if no separate radio adapter is used.

Table 306. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-46 (47)

[ADD_METER_INFO]

Add or update meter

47 (48)

0xnn

Checksum

48 (49)

0x16

Stop character


Set meter lock flag

SND-UD with the following M-Bus record:

0x0DDIF ”variable length”

0xFCVIF ”plain text VIF” + extension bit for object action code

0x08length of plain text VIF (actual VIF is meter address)

0xnnmeter address ID lsByte

0xnnmeter address ID

0xnnmeter address ID

0xnnmeter address ID msByte

0xnnmeter address MANUFACTURER lsByte

0xnnmeter address MANUFACTURER msByte

0xnnmeter address VERSION

0xnnmeter address DEVICE TYPE

0x03/0x06object action code, 0x03 = set flag, 0x06 = clear flag

Individual flags are written by supplying the corresponding meter address.

The flags of all installed meters can be written (set or cleared) with a single command by setting all eight meter address bytes to 0xFF.

Note

This command is useful only for changing lock flags of meters that are already installed in the meter list since a meter's lock flag will always be cleared as default at the moment of installation.

Set configuration tag

The configuration tag can be used to indicate if changes have been made in the LCD menu after any configuration has been made using the wired M-Bus interface.

Table 308. Master to slave

Byte index

Data

Description

0

0x68

Start character 1

1

0xnn

L-field 1

2

0xnn

L-field 2

3

0x68

Start character 2

4

0x43 | 0x53 | 0x63 | 0x73

C-field = SND-UD

5

0xnn

A-Field = Address of slave

6

0x51

CI-Field = Master to slave data send

7-13 (14)

0x04FD0Bnnnnnnnn

OR

0x04FD0B00nnnnnnnn

Write configuration tag

nnnnnnnn = 32 bit unsigned tag

Valid range: 0x00 .. 0xFFFFFFFF

14 (15)

0xnn

Checksum

15 (16)

0x16

Stop character


Was this article helpful?

0 out of 0 found this helpful
Have more questions? Submit a request

Comments (0 comments)

Article is closed for comments.
