Configuration

Settings menu page

The settings menu page is used to change configuration of the product.

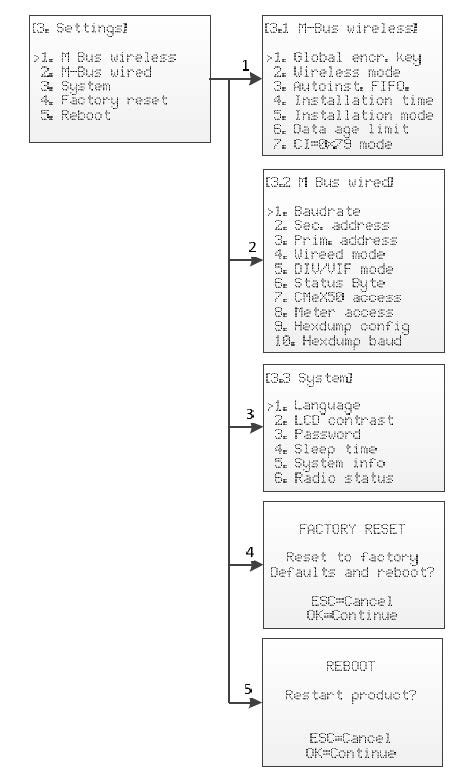

Settings menu page navigation overview

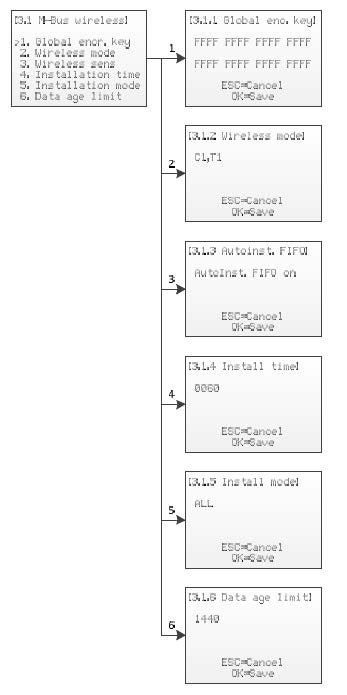

M-Bus wireless menu page

The M-Bus wireless menu page is used to change the configuration and behavior of the Wireless M-Bus Receiver of the product.


M-Bus Wireless settings menu

Editing global encryption key

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 1. Global enc. key is selected.

    The global encryption key is used by meters configured to use the global key for encryption/decryption. This is useful when multiple meters have the same encryption key.

    The encryption key is used to decrypt the telegrams received from the wireless M-Bus slave, which enables standard wired M-Bus readout. If a meter is sending encrypted telegrams and there is no/wrong encryption key entered, the readout on the wired M-Bus interface will return a container telegram with encrypted data. This kind of container telegram is normally not readable by a standard M-Bus readout software.

    The encryption key can be obtained by the manufacturer of the wireless M-Bus slave.

  3. Change the encryption key using Up/Down keys and move the cursor using Right/Left keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing wireless mode

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 2. Wireless mode is selected.

    The wireless mode is used to configure the product to be able to communicate with different types of MBus wireless slaves.

    The Cx WIDE modes use mode T receiver configuration and may allow reception of “problematic” mode Cx meters with excessive frequency or data rate error. Use WIDE modes only if absolutely necessary.

  3. Change the wireless mode of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

The following table describes possible M-Bus wireless modes/combined modes.

Table 282. Wireless M-Bus modes

Name

Description

S

Product is configured to communicate with S1 slaves.

T

Product is configured to communicate with T1 slaves.

T+Ca

Product is configured to communicate with T1 and C1a slaves.

T+Cb

Product is configured to communicate with T1 and C1b slaves.

T+Ca+Cb

Product is configured to communicate with T1, C1a and C1b slaves.

Ca

Product is configured to communicate with C1a slaves.

Cb

Product is configured to communicate with C1b slaves.

Ca+Cb

Product is configured to communicate with C1a and C1b slaves.

Ca WIDE

Product is configured to communicate with C1a slaves, wide mode.

Cb WIDE

Product is configured to communicate with C1b slaves, wide mode.

Ca+Cb WIDE

Product is configured to communicate with C1a and C1b slaves, wide mode.


Editing storage method for meters

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 3. Autoinst. FIFO. is selected.

    The storage method determines how to save new meters. Up to 800 meters can be stored in the CMeX50. See the following for description how to use the different modes.

  3. Change the storage method of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 283. Storage method for meters

Name

Description

On

This mode is used to save according to the FIFO model (First In First Out). When 800 meters are stored and a new meter is found, the oldest meter will be removed from the list and the new will be saved instead.

Off

In this mode, the first found 800 meters are saved. After that, no more meters can be found and saved.


Editing installation time

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 4. Install time is selected.

    The installation time is the time the product will stay in installation mode when starting an installation.

  3. Change the installation time of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing installation mode

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 5. Install mode is selected.

    The installation mode is used to configure which wireless M-Bus telegrams are accepted for installing new wireless M-Bus slaves in installation mode. See the following table for available modes.

  3. Change the installation mode of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 284. Installation modes

Name

Description

SND_IR

Only telegrams of type SND_IR will be able to add new meters during installation.

ALL

All valid telegrams will be able to add new meters during installation.


Editing data age limit

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 6. Data age limit is selected.

    The data age limit is the maximum time in minutes a wireless M-Bus telegram is valid for readout on the wired M-Bus interface. If a telegram is older than the data age limit, the corresponding virtualized wired M-Bus slave will stop responding to any requests.

  3. Change the data age limit of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing the handling of telegram with CI = 0x79 and 0x69 (Compact data / format frame)

  1. Enter the M-Bus wireless settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 7. CI=0x79 is selected.

  3. Change the handling of telegram by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 285. Choice of container, not container mode

Name

Description

Ignore

Ignore telegram.

Put in container

Save the whole received telegram in original condition. The telegram will be placed in a ”data container” when retrieved via wired M-Bus.

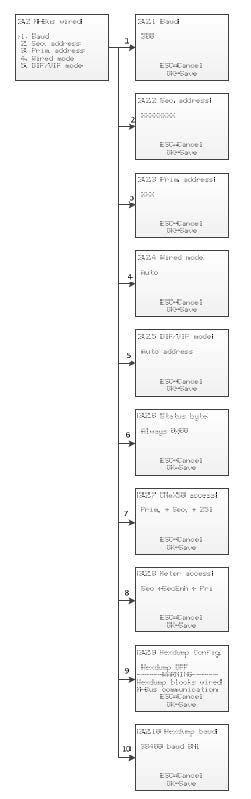

M-Bus wired menu page

The M-Bus wired menu page is used to change the configuration and behavior of the wired M-Bus slave interface of the product. The wired M-Bus interface is used to readout the virtualized wireless M-Bus slaves by a standard M-Bus Master.


Wired M-Bus settings menu

Editing wired M-Bus baud rate

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 1. Baud is selected.

    The wired M-Bus baud rate is the speed to use when communicating with the M-Bus wired interface. Accepted baud rates are 300, 600, 1200, 2400, 4800 and 9600. This setting is global for all virtualized M-Bus slaves and the CMeX50 M-Bus slave implementation.

  3. Change the baud rate by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing secondary address of the CMeX50

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 2. Sec. address is selected.

    The secondary address of the CMeX50 is used when using secondary addressing to access the M-Bus wired slave interface of the product.

  3. Change the secondary address of the product by using Up/Down keys and move the cursor using Right/Left keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing primary address of the CMeX50

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 3. Prim. address is selected.

    The primary address of the CMeX50 is used when using primary addressing to access the M-Bus wired slave interface of the product. The CMeX50 can also always be accessed using the primary address 251.

  3. Change the primary address of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing wired mode

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 4. Wired mode is selected.

    The wired mode is used to configure the product to encapsulate all wireless M-Bus telegrams in containers or trying to send the data to the requesting M-Bus master as a standard M-Bus telegram with readable M-Bus data.

  3. Change the wired mode of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing DIF/VIF mode

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 5. DIF/VIF is selected.

    The DIF/VIF mode is used to configure the product to add optional information to wireless M-Bus telegrams on the wired M-Bus interface.

  3. Change the DIF/VIF mode of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing status byte

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 6. Status byte is selected.

    Here you select what should be in the byte STATUS in the header of the wired M-Bus telegram when collecting data from a virtualised meter.

  3. Change the status byte of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 286. Status byte

Name

Description

Always 0x00

Always 0x00

Wireless status

STATUS byte from long (CI=0x72) or short (CI=0x7A) application header in received radio telegram or 0x00 if such header is missing.


Editing CMeX50 access

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 7. CMeX50 access is selected.

    In this menu, you choose which addressing modes that can be used on wired M-Bus for access to CMeX50.

  3. Change the CMeX50 access of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 287. CMeX50 access

Name

Description

Prim + Sec + 251

Primary address that may have been selected in menu 3.2.3, secondary address that have been selected in menu 3.2.2 (normally CMeX50 serial number) and the fixed primary address 251.

Address 251 only

Only the fixed primary address 251.


Editing meter access

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 8. Meter access is selected.

    Meter access chooses which addressing modes that can be used on wired M-Bus for access to the virtualized meters.

  3. Change the meter access of the product by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 288. Meter access

Name

Description

Sec + SecEnh + Pri

Secondary addressing, enhanced secondary addressing (with CMeX50 ”fabrication number”) and primary addressing.

SecEnh only

Only enhanced secondary addressing (with CMeX50 ”fabrication number”).


Editing hexdump configuration

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 9. Hexdump config is selected.

    Caution

    If the hexdump is used (if this value is set to other than OFF), the wired M-Bus will not work.

    The hexdump is used for reading directly from received wireless messages to a PC (connected via USB or RS232 to CMeX50).

  3. Change between the different configuration modes by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Table 289. Hexdump configuration

Name

Description

OFF

Normal operation, wired M-Bus-, RS-232- and USB ports used for M-Bus.

Info only

Short information about received radio telegram is sent out on the serial port in real time. Meters can be installed and the telegrams are stored as usual in the CMeX50’s memory, but the telegrams can not be collected via wired M-Bus since the serial port is busy.

Info + Tgm

Same as above, but the complete content of the telegram is also sent out on the serial port.

Info only sniffer

Short information about received radio telegram is sent out on the serial port in real time. This is a ”hexdump mode”, meters can not be installed and the telegrams are not stored in the CMeX50.

Info + Tgm sniffer

Same as above, but the complete content of the telegram is also sent out on the serial port.


Format on hexdump in mode ”Info only”
iiiiiiii;*mmm;vv;dd;ss;rrrr;ww;<cr><lf>

where:

  iiiiiiii = Meter ID, eight digits
  *mmm = The meter’s manufacturer code in a four-character wide field.
         The first character is a space if bit 15 in
         ”manufacturer field” is zero (normal). If this bit
         is one, the first character is an asterisk (*).
         The three following characters are the meter’s manufacturer code
         In the shape of three ASCII characters.
  vv   = The meter’s ”Version byte” in hexadecimal form, two characters.
  dd   = The meter’s ”Device type byte” in hexadecimal form,
         two characters.
  ss   = The meter’s ”Status byte” in hexadecimal form, two characters.
  rrr  = Received signal strength (RSSI) in the unit dBm.
         Right aligned in a four-character wide field.
  ww   = Wireless M-Bus mode, two characters:
           ” S” = Mode S
           ” T” = Mode T
           ”Ca” = Mode C, frame type A
           ”Cb” = Mode C, frame type B
  <cr> = Carriage return, 0x13
  <lf> = Line feed, 0x10
Example:
00028954; ELV;20;1B;00; -83; T;

In hexdump mode ”Info + Tgm” is the same string as above, without <cr><lf> sent, followed by the telegrams content in hexadecimal form with two characters per byte. At the end is a semicolon followed by <cr><lf>.

Example:
00028954; ELV;20;1B;00; -83; T;5744961554890200201B7AE400000002...0F;<cr><lf>
                               | | |   |       | | | | | |   |
                               L-field = 0x57  | | | | | |   |
                                 C-field = 0x44| | | | | |   |
                                   MFR-field = 0x1596 = ”ELV”|
                                       ID-field = 0x00028954 |
                                               VER = 0x20    |
                                                 DEV = 0x1B  |
                                                   CI = 0x7A |
                                                     ACC = 0xE4
                                                       STATUS = 0x00
                                                         CONFIG = 0x0000
                                                             DIF = 0x02

Editing hexdump baud

  1. Enter the M-Bus wired settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key where 10. Hexdump baud is selected.

    In this menu, you choose which speed you should send data on the hexdump.

  3. Change between the different baud rates by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

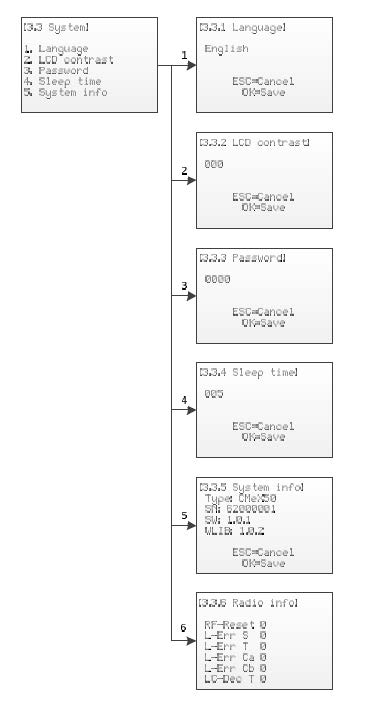

System menu page

The system menu page is used to change configuration which is global for the product.


System settings menu

Editing language

  1. Enter the system settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 1. Language is selected.

    The language setting affects the language output on the product LCD display. Current languages are English, Swedish and German.

  3. Change the language by using Up/Down keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing LCD contrast

  1. Enter the system settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 2. LCD contrast is selected.

    This setting changes the contrast of the LCD display.

  3. Change the LCD contrast of the product by using Up/Down keys and move the cursor using Right/Left keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Editing password

  1. Enter the system settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 3. Password is selected.

    The password is used when a user is accessing the product using the LCD display.

  3. Change the password of the product by using Up/Down keys and move the cursor using Right/Left keys.

  4. Retype the password when prompted.

  5. Press OK to accept the changes, or press ESC to cancel.

Editing sleep time

  1. Enter the system settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 4. Sleep time is selected.

    The sleep time is the time in minutes before the LCD display enters sleep mode and a new login is requested.

  3. Change the sleep time of the product by using Up/Down keys and move the cursor using Right/Left keys.

  4. Press OK to accept the changes, or press ESC to cancel.

Show system information

  1. Enter the system settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 5. System info is selected.

    The system information page is used to show information about the product to the user.

  3. Press ESC key to exit the system information page.

Show radio status

  1. Enter the system settings page.

  2. Use Up/Down keys to scroll through the menu and press OK key when 6. Radio status is selected.

    The radio status page is used to show status for the radio.

  3. Press ESC key to exit the radio status page.

Table 290. Radio status

Name

Description

RF-Reset

Number of times the radio has been restarted because no telegram has been received in 30 minutes.

L-Err S

Number of times the L-field has been less than 9 in mode S.

L-Err T

Number of times the L-field has been less than 9 in mode T.

L-Err Ca

Number of times the L-field has been less than 9 in mode Ca.

L-Err Cb

Number of times the L-field has been 128, 129 or less than 11 in mode Cb.

LC-Dec T

Number of times the L- and C-field has had invalid 4/6-coding in mode T.

F-Dec T

Number of times invalid 4/6-coding has been found in RX FIFO-interrupt.

E-Dec T

Number of times invalid 4/6-coding has been found in RX End-of-Packet-interrupt.

H-Err Cx

Number of times other than 0x3D or 0xCD came after 0x54 in mode Cx.

C-Err S

Number of telegrams with at least one invalid CRC received in mode S.

C-Err T

Number of telegrams with at least one invalid CRC received in mode T.

C-Err Ca

Number of telegrams with at least one invalid CRC received in mode Ca.

C-Err Cb

Number of telegrams with at least one invalid CRC received in mode Cb.

Clear ALL errors

Press OK here to reset all above counters.


Resetting to factory default

  • Use Up/Down keys to scroll through the menu and press OK key when 4. Factory reset is selected.

    When accepting the question on the confirm page, the product restores all configuration to default, removes all meters, and reboots.

Reset to factory defaults can also be made using standard M-Bus command Application reset.

Rebooting the product

  1. Use Up/Down keys to scroll through the menu and press OK key when 5. Reboot is selected.

  2. Press OK.

Was this article helpful?

0 out of 0 found this helpful
Have more questions? Submit a request

Comments (0 comments)

Article is closed for comments.
