Product overview

Application description

The CMeX50 is a wireless M-Bus Receiver handling up to 800 wireless M-Bus slaves and up to 32 wired MBus slaves. The product can operate in all commonly used wireless M-Bus modes; T1, C1, and S1.

The CMeX50 will virtualize the connected wireless M-Bus slaves and the slaves will be readable using standard M-Bus commands. The CMeX50 can be read using RS232, USB and standard M-Bus 2-wire. This makes the product usable in any standard M-Bus system, without having any knowledge about wireless M-Bus.

The CMeX50 can be used together with Elvaco CMe/CMeX Series products, which enables GSM/GPRS communication, TCP/IP communication, M-Bus Master extension modules and much more.

The CMeX50 should be used in the following scenarios:

  • Radio networks in villa-areas

  • Radio networks in tenant owners associations

  • Reading any type of wired M-Bus slave

  • Reading any type of wireless M-Bus slave supporting T1, C1, or S1

Parts overview

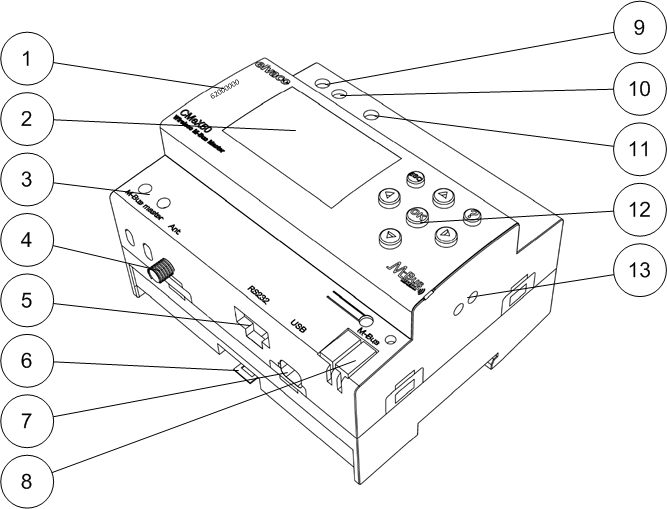

CMeX50 Parts overview

  1. Serial number

  2. LCD display

  3. M-Bus master

  4. Antenna connector

  5. RS232 connector

  6. DIN-rail lock

  7. USB connector

  8. M-Bus slave

  9. Power supply L

  10. Power supply N

  11. Protective earthing

  12. Keypad

  13. IR interface right (IR interface also on left side)

LCD display

The product is equipped with a display and a keypad to navigate in the menu. After powered up, the product stays in sleep mode until any key is pressed. The product asks for a login password, which is default set to 0000.

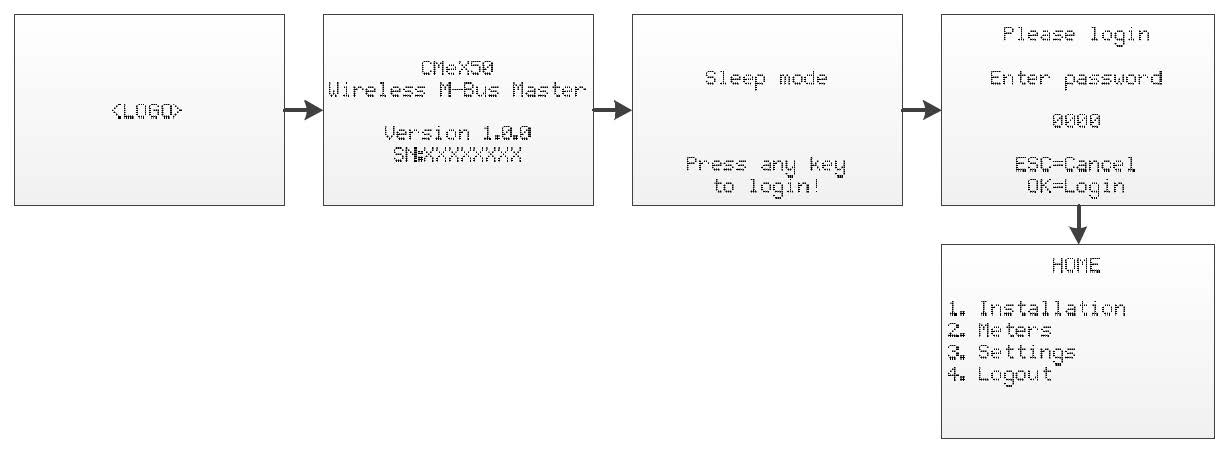

Power on sequence

Menu system overview

  1. Installation

    Mfr: Dev:

    • Start, keep meters

    • Start, clear meters

    • Start, cont

      • List found meters, (Installation window)

  2. Meters

    List medium/manufactures

    Medium: Manuf:

    • List meters

      • Choosed meter

        • Info about meter

      • Sort

        (Sort the list by, Id, Age, Status)

        • Edit

          • Primary address

          • Encryption key

        • Delete

  3. Settings

    3-1 - M-Bus wireless

    • Global Encr. key

    • Wireless Mode

      • T1/T2/C1/C2 (T2/C2 mode is not implemented yet)

        • C1, T1

        • T1,T2 (But T2 is not implemented yet)

        • T1

      • S1/S2 (But S2 mode is not implemented yet)

        • S1

    • Autoinst. FIFO

      • AutoInst. FIFO on

      • AutoInst. FIFO off

    • Installation time

    • Install mode

      • All

      • Only SND_IR

    • Data age limit

    • CI=0x79 mode

      • Ignore telegram

      • Put in container

    3-2 - M-Bus wired

    • Baud rate

      • 300

      • 600

      • 1200

      • 2400

      • 4800

      • 9600

    • Sec. address

    • Prim. address

    • Wired mode

      • Auto

      • Container

      • DIF/VID mode

        • Address,Time,Rssi

        • Address, Time

        • Address

        • Auto address

      • Status byte

        • Always 0x00

        • Wireless status

      • CMeX50 access

        • Prim. + Sec. + 251

        • Address 251 only

      • Meter access

        • Sec + SecEnh + Pri

        • SecEnh only

      • Hexdump config.

        • Hexdump OFF

        • Info only

        • Info + Tgm

        • Info only SNIFFER

        • Info + Tgm SNIFFER

      • Hexdump baud

        • 38400 baud 8N1

        • 19200 baud 8N1

        • 9600 baud 8N1

        • 4800 baud 8N1

        • 2400 baud 8N1

        • 1200 baud 8N1

        • 600 baud 8N1

        • 300 baud 8N1

    3-3 - System

    • Language

      • LCD Contrast

    • Password

      • Sleep time

      • System info

      • Radio status

    3-4 - Factory reset

    3-5 - Reboot

  4. Logout

Factory default settings

Table 294. Factory defaults

Section

Name

Value

M-Bus wireless

Global encryption key

Random from factory

M-Bus wireless

Wireless mode

C1,T1 (combined mode)

M-Bus wireless

Wireless sensitivity

Wide

M-Bus wireless

Installation time

60 minutes

M-Bus wireless

Installation mode

ALL (handling both SND_IR and SND_NR)

M-Bus wireless

Data age limit

1440 minutes

M-Bus wired

Baud rate

2400 bit/s

M-Bus wired

Secondary address

Product serial number

M-Bus wired

Primary address

251

M-Bus wired

Wired mode

Auto

M-Bus wired

DIF/VIF mode

Auto address

System

Language

English

System

LCD contrast

0

System

Password

0000

System

Sleep time

5 minutes


Type approval

Refer to Declaration of Conformity.
