Product overview
Key features of the product include:
-
CMe2100 G3: An integrated M-Bus Master which can drive up to 8 unit loads, 8T. By using an M-Bus Master from Elvaco, the number can be extended to up to 128 unit loads, 128T.
-
CMe2100 LTE: An integrated M-Bus Master which can drive up to 16 unit loads, 16T. By using an M-Bus Master from Elvaco, the number can be extended to up to 256 unit loads, 256T.
-

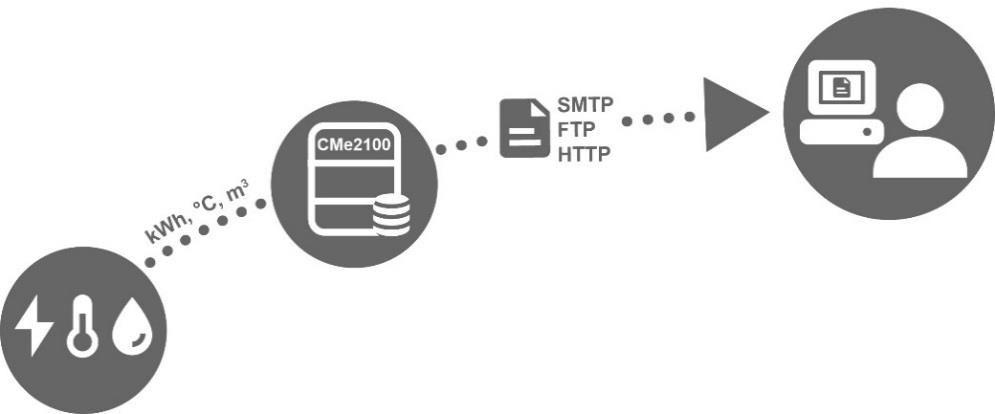

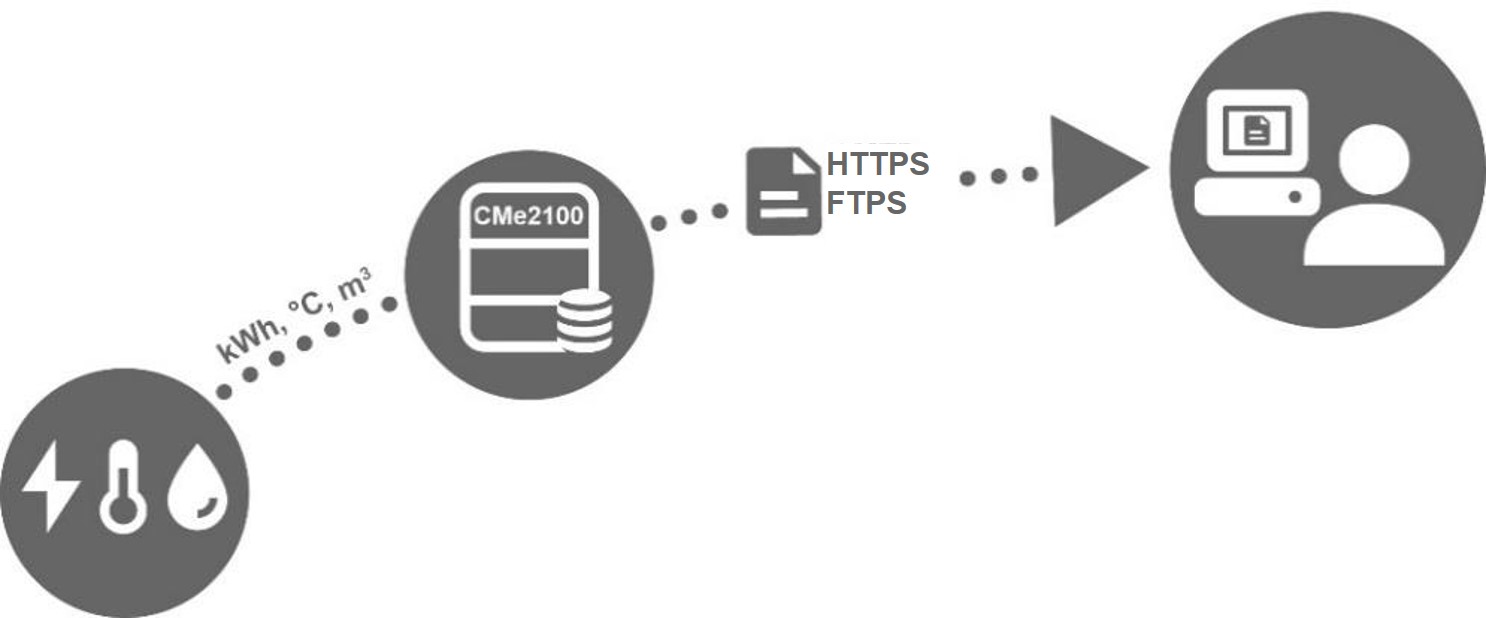

Customized meter value reports via HTTP, FTP and e-mail.
-
Remote configuration of settings using the mobile networks.
The CMe2100 is compatible with a wide range of meters, including:
-
All types of M-Bus meters, regardless of manufacturer.
-
The following temperature and humidity sensors, manufactured by Elvaco: CMa10, CMa10w, CMa11, CMa11w, CMa12w, CMa20, CMa20w.
-
All ABB electricity meters equipped with IR interface.
The CMe2100 can be used with any M-Bus Master from Elvaco to increase the number of meters it is able to drive.
CMe2100 G3 can by default drive up to 8 unit loads (where one load equals 1.5 mA) and has a software limit of 128 meters
CMe2100 LTE can by default drive up to 16 unit loads (where one load equals 1.5 mA) and has a software limit of up to 256 meters (depending of software license).
The CMe2100 can perform readouts of wired M-Bus meters, wireless M-Bus meters, or a combination of both. To read wireless M-Bus meters, the Metering Gateway will have to be combined with a wireless M-Bus receiver, for example Elvaco’s CMeX50.
|
|
|

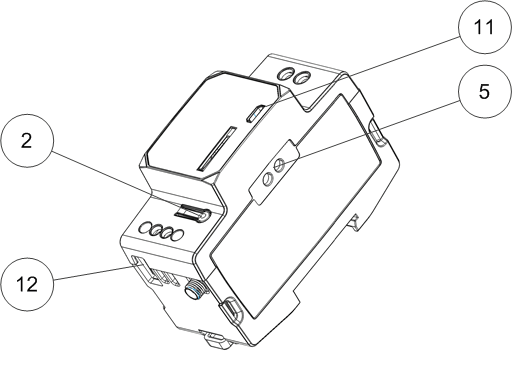

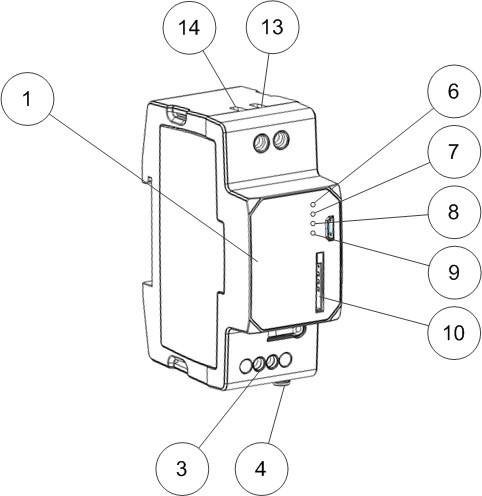

Buttons and indicators
-
Serial number
-
Push button
-
M-Bus connector
-
Antenna SMA connector
-
IR interface
-
Status LED (green)
-
Error LED (red)
-
Network LED (yellow)
-
Blue LED (not used)
-
SIM card holder
-
USB slave connector
-
USB master connector
-
Power supply L
-
Power supply N
Table 6. Green and red LED
|
Green LED |
RED LED |
Product state |
Visual |
|---|---|---|---|
|
Permanently off |
Permanently off |
Power off or performing restart. |
|
|
Permanently on |
Permanently on |
Power on. |
|
|
1500 ms on / 100 ms off |
Permanently off |
Normal operation. |
|
|
1500 ms on / 100 ms off |
Permanently on |
Short circuit or overcurrent on M-Bus. |
|
|
1500 ms on / 100 ms off |
800 ms on / 800 ms off |
No SIM card installed. |
|
|
1500 ms on / 100 ms off |
100 ms on / 1500 ms off |
Not connected to network. |
|
Table 7. Yellow LED
|
Yellow LED |
Product state |
Visual |
|---|---|---|
|
Permanently off |
Power off or ongoing restart |
|
|
500 ms on / 500 ms off |
Limited network service due to one of the following reasons:
|
|
|
10 ms on / 990 ms off (only for CMe2100 G3) |
GSM CS data call or GSM voice call in progress or established. |
|
|
10 ms on / 1990 ms off |
Ongoing data transfer. |
|
|
10 ms on / 3990 ms off |
Product registered on a network and no ongoing data transfer. |
|
Table 8. Blue LED
|
Blue LED |
Product state |
Visual |
|---|---|---|
|
800 ms on / 800 ms off |
Reboot |
|
|
800 ms on / 800 ms off |
Meter installation |
|

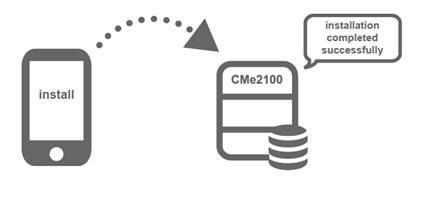

The CMe2100/CMi2110/CMe2130 has a built-in command parser, which analyses all the incoming commands executed by SMS or Telnet mode. By default, all the commands create a response from the product. The product will respond with OK if the command is completed successfully. If not, the product will respond with ERROR [Error description].
Each CMe2100/CMi2110/CMe2130 command corresponds to a security level. Depending on that level, a security code may be needed to execute certain commands. It is important to note that the security functionality is by default set to off and needs to be enabled. To learn more about configuring the security settings of the CMe2100/CMi2110/CMe2130, see Security features.
