Operation

Watchdog restart

The product has an intelligent Watchdog functionality to enable stable operation. When any application error is discovered, the product will automatically reset and reinitialize again.

Power on

When powered on, the product has an internal boot time of approximately 10 seconds. During the boot time, the product will execute the following tasks:

  • Initialize all settings

  • Start necessary tasks for operation

  • Start M-Bus transparent servers

Normal operation

During normal operation, the following tasks are executed:

  • Listening for incoming requests on transparent TCP server

  • Status indication (LED)

  • User interaction (push button)

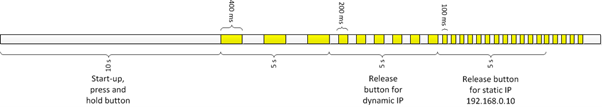

Resetting to factory default

There are two alternatives when resetting the product to factory default;

Resetting to use dynamic IP addressing

  1. Press and hold the button during power-up and hold it for at least 15 seconds. The ACT LED will go from slow to fast flashing after 15 seconds.

  2. Release the button and the product will be reset to factory defaults and restart.

    After restart, the product will be given an IP address from available DHCP server.

Resetting to use static IP

  1. Press and hold the button during power-up and hold it for at least 20 seconds. The ACT LED will go from slow to fast flashing after 15 seconds. After 20 seconds, the ACT LED will flash even faster.

  2. Release the button and the product will be reset to factory defaults and restart.

    After restart, the product will be set to static IP address according to: IP: 192.168.0.10, MASK: 255.255.255.0, GATEWAY: 192.168.0.1


Reset to factory default
