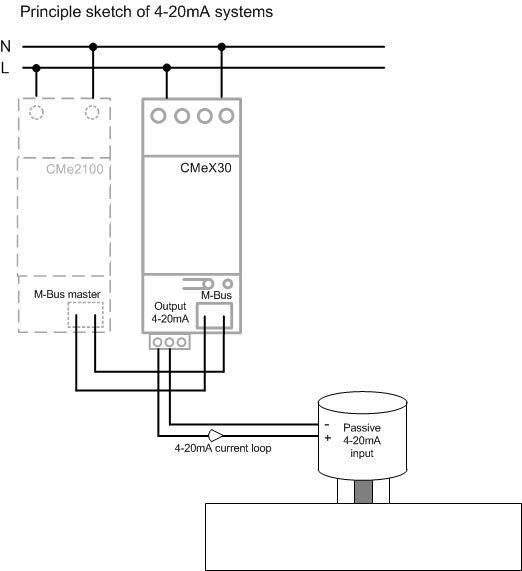

Connecting the product to input 4-20 mA

CMeX30 can be connected to any passive current input that can handle 4-20 mA.


  1. Connect the signal cable for 4-20 mA to the left terminal of screw terminal.

  2. Connect the negative cable (signal GND) to the center terminal of screw terminal.
