Connecting the product to input 0-10 V

CMeX30 can be connected to any analog voltage input that can handle 0-10 V.

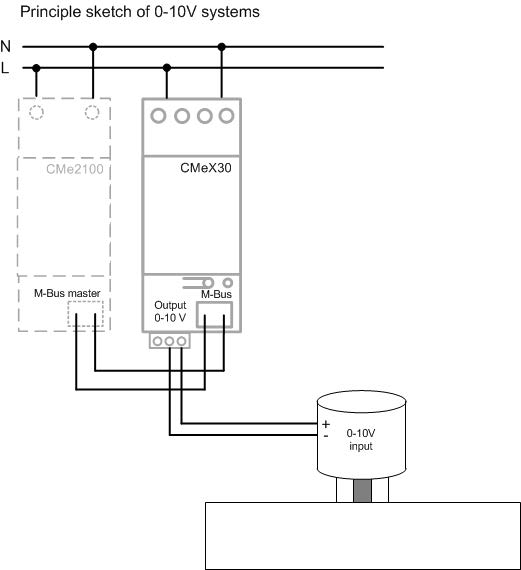

  1. Connect the negative cable (signal GND) to the center terminal of screw terminal (3).

  2. Connect the signal to the right terminal of screw terminal (3).
