Product overview

Features

CMi4170 offers a combination of battery operation with long lifetime and a versatile application through its many configuration options. Key features of the module include:

  • LoRaWAN CertifiedCM

    The CMi4170 is certified according to LoRa Alliance®.

    For more information, see https://lora-alliance.org/.

  • Extensive battery lifetime

    The module’s EcoMode feature enables the module to achieve a battery-lifetime of 6+1 or 10+1 years with a new internal meter battery (“+1” refer to 1 year of storage).

  • Easy start-up

    As soon as the meter connectivity module is mounted in the meter and activated, it will join the LoRaWAN® network.

  • Easy and secure commissioning

    With Elvaco’s One-Touch Commissioning (OTC), deployment, configuration and key transferring can be performed in a secure and flexible way.

  • Unique and flexible message formats

    CMi4170 has several different message formats, this makes it easy to customize the payload to the unique demands of each application.

Compatibility

CMi4170 is compatible with Engelmann Sensostar meters with a compatible firmware version. Once the module is mounted and starts up, a compatibility check is made to ensure that it is compatible with the meter firmware. If the module is mounted in an incompatible meter, this is indicated in the OTC App.

The meter’s firmware version can be shown in the meter’s display, for further information, refer to the meter’s manual.

The following table shows the minimum firmware versions required.

Table 268. CMi4170 - Meter firmware compatibility

Meter

Minimum firmware version

Engelmann SensoStar S3

103/14

Engelmann SensoStar S3C

100/5

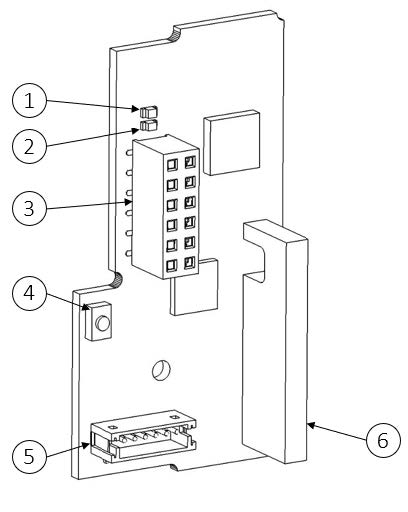

Parts overview

  1. Green LED

  2. Red LED

  3. Interface connector

  4. Push button

  5. Pulse input

  6. LoRaWAN® antenna

Note

The NFC antenna is integrated in the edge of the PCB.
