Installation
Mount CMi6140 in a Kamstrup MC403, MC603, or MC803 by following the procedure below.
-

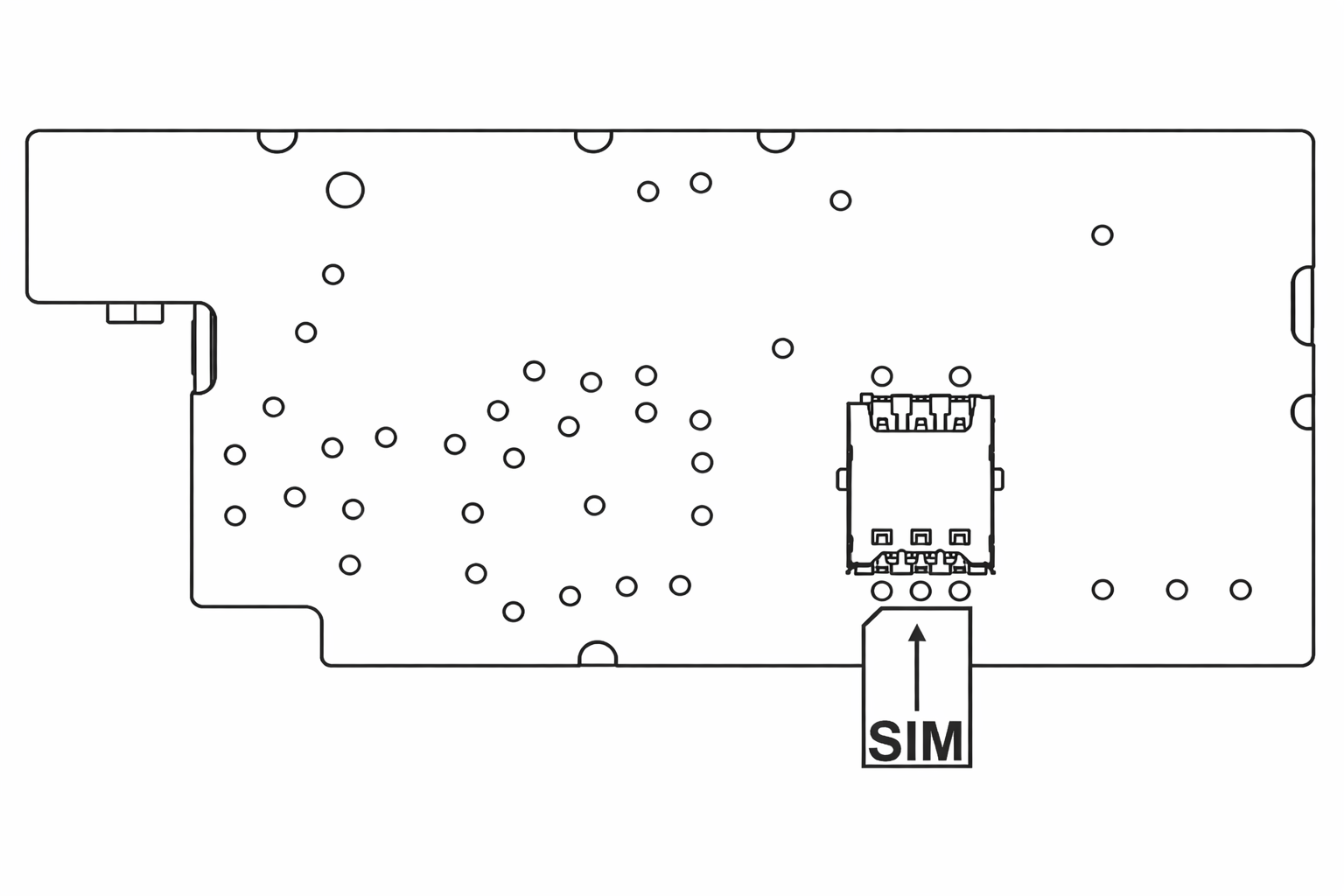

Insert a SIM card (size nano) in the SIM card holder.
-

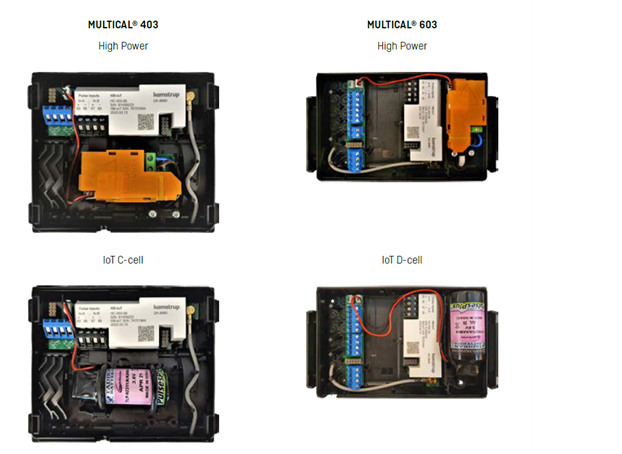

Open the meter housing and insert the module in an empty module slot. Depending on the meter type, there can be 1 (MC403), 2 (MC603), or 3 (MC803) module slots available.
-
Connect an antenna to the module MCX antenna connector and route the cable along the guiding pins in the meter housing.
-
Close the meter housing. The module is powered once the lid is closed.
-
Activate the module using either the Elvaco OTC App, or by using the meter front buttons (see activation section for details).
Upon delivery, CMi6140 is by default configured to be inactive, which means that no messages will be transmitted until it has been activated. Before activating the module, make sure the mounting procedure has been followed. There are two ways to activate the module:
-
MULTICAL® 403: Press and hold both buttons on the front of the meter until “CALL” is shown on the meter display.
-
MULTICAL® 603 and MULTICAL® 803: Press down the two arrow buttons on the front of the meter until “CALL” is shown on the meter display.
NFC scanning position
MULTICAL® 403: Place the phone in the center of the raised section on the back of the meter.
MULTICAL® 603: The meter has two slots:
-
Left slot: Middle of the raised back section
-
Right slot: Right side of the raised back section
MULTICAL® 803: Open the meter and place the phone close to the device.
In addition to the Elvaco OTC App, the status of the module can be read via the meter display.
To retrieve the status of the module via the meter display, enter the tech loop of the meter display and request the status information of the module. For detailed information, please refer to the Kamstrup MULTICAL Technical description.
See the following tables for information accessible in tech menu of the meter and how to interpret the status:
Table 53. Supported menus
|
Main-menu |
Sub-menu |
View ID |
Name |
Purpose |
|---|---|---|---|---|
|
1 |
0 |
31 |
Module type |
Show module type and config |
|
1 |
1 |
70 |
Network status |
Show the status of the network connection |
|
1 |
2 |
71 |
Bootstrap status |
Show the status of the LwM2M Bootstrap connection |
|
1 |
3 |
72 |
DM status |
Show the status of the LwM2M DM connection |
|
1 |
4 |
73 |
MDM status |
Show the status of the MDM connection |
|
1 |
5 |
74 |
Network condition - RSRP |
Show RSRP value for last transmission |
|
1 |
6 |
75 |
Network condition - RSRQ |
Show RSRQ value for last transmission |
|
1 |
7 |
76 |
Network condition - ECL |
Show ECL value for last transmission |
Table 54. Module type
|
Digit |
Meaning |
Comment |
|---|---|---|
|
0-2 |
Datagram description |
Hardcoded to 100 |
|
3-4 |
System configuration |
Hardcoded to 00 |
|
5-6 |
Module type |
Hardcoded to the value 57 |
|
7 |
Not used, left blank |
Table 55. Network status
|
Number |
Meaning |
|---|---|
|
0 |
Device is inactive, network is not used |
|
1 |
Cannot read SIM |
|
2 |
Attempting to register on the network |
|
11111111 |
Successfully registered to the network |
Table 56. Bootstrap status
|
Number |
Meaning |
|---|---|
|
0 |
Bootstrap not started |
|
1 |
Bootstrapping |
|
2 |
Bootstrap Failed |
|
11111111 |
Device has bootstrapped |
Table 57. DM Status
|
Number |
Meaning |
|---|---|
|
0 |
Device is inactive, network is not used |
|
1 |
Device is configured to not use DM |
|
11111111 |
Successfully registered to the DM server |
Table 58. MDM Status
|
Number |
Meaning |
|---|---|
|
0 |
Device is inactive, network is not used |
|
1 |
Device is configured to not use separate MDM connection |
|
2 |
Attempting to register to MDM server |
|
3 |
Failed to register due to issues with encryption or communication timeout |
|
4 |
Registration denied |
|
5 |
Setting up DTLS |
|
6 |
Connecting to MDM Server, such as MQTT-SN Gateway |
|
11111111 |
Last meter data transport successful |
Example 3. RSRP Menu
The RSRP is shown as a signed floating point value.
Example: -112.7 → -112.7 dBm
When activated, the module will attempt to connect to the NB-IoT network. When the module successfully connects to the network, a meter readout will be triggered and automatically sent to the receiving system. The network status can be read through the Elvaco OTC app or the meter display (see section Read the module status via the meter display for details).
If the module fails to join the mobile network, it will perform retries until it succeeds. The time between each attempt will increase for every attempt until it is performed once every day. A new join attempt cycle can be manually forced by deactivating and activating the module using the Elvaco OTC App.
