Installation

DIN-rail mounting

The product is mounted on a DIN-rail. The clip on the bottom is used to attach and detach the product from the DIN-rail. For safety reasons, a DIN-rail enclosure must cover the terminals.

Connecting to M-Bus

Caution

CMeX10 Series handles from 32 up to 256 slaves, be sure to use the correct model in your application. Overloading the bus will turn the ERR LED on and turn off the M-Bus bus.

Note

All connected M-Bus slave devices must have unique primary or secondary M-Bus addresses depending on addressing mode used.

M-Bus is a multi-drop 2-wire bus, with no polarity.

  1. Use a cable with an area of 0.25-1.5 mm2, e.g. a standard telephone cable (EKKX 2x2x0.25).

  2. Connect the wiring to the screw connector or the push wire connector.

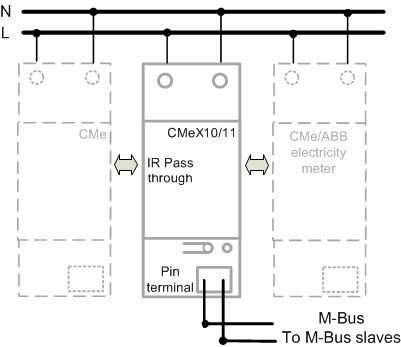

For CMeX10 and CMeX11:

Caution

Do not exceed the maximum cable length of 1000 m.

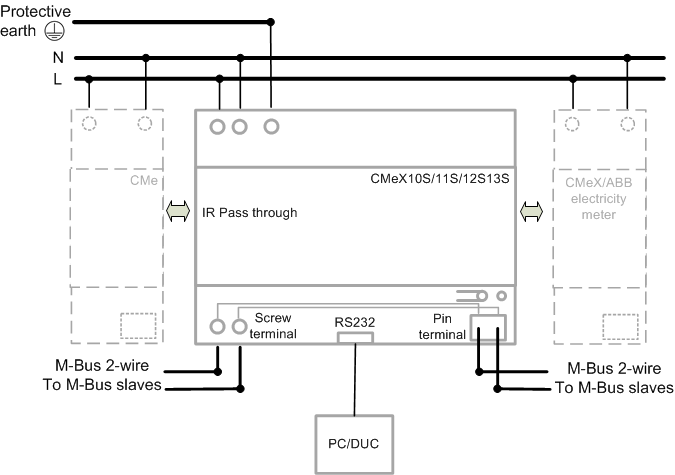

For CMeX10S, CMeX11S, CMeX12S, and CMeX13S:

Caution

Do not exceed the maximum cable length of 5000 m.

CMe2100 IR interface

By using the IR interface, CMe2100 can communicate with Elvaco M-Bus Masters and Wireless M-Bus Receivers (CMeX Series) as well as ABB electricity meters without using any cables. Mount the CMe2100 next to the other device with the IR interfaces of the two products facing each other. Before attempting to use the IR interface, make sure to remove the IR shield (5).

Using RS232 interface

Use the RS232 interface to use the CMeX10S, CMeX11S, CMeX12S, and CMeX13S as an M-Bus master from RS232 to M-Bus 2-wire interface.

  • Connect the RS232 interface to the RJ45 connector.

Connecting the power supply

Warning

The installation must be performed by a qualified electrician or another professional with the required knowledge.

  1. Connect main supply to screw terminal for power supply N and power supply L. Main supply voltage should be in the range of 100-240 VAC, 50/60 Hz.

  2. Connect the power to a clearly marked and easily accessible switch to make sure the product can be switched off during service work.

  3. If ground signal is available, connect to screw terminal for ground.
