Technical specifications

Table 5. Mechanics

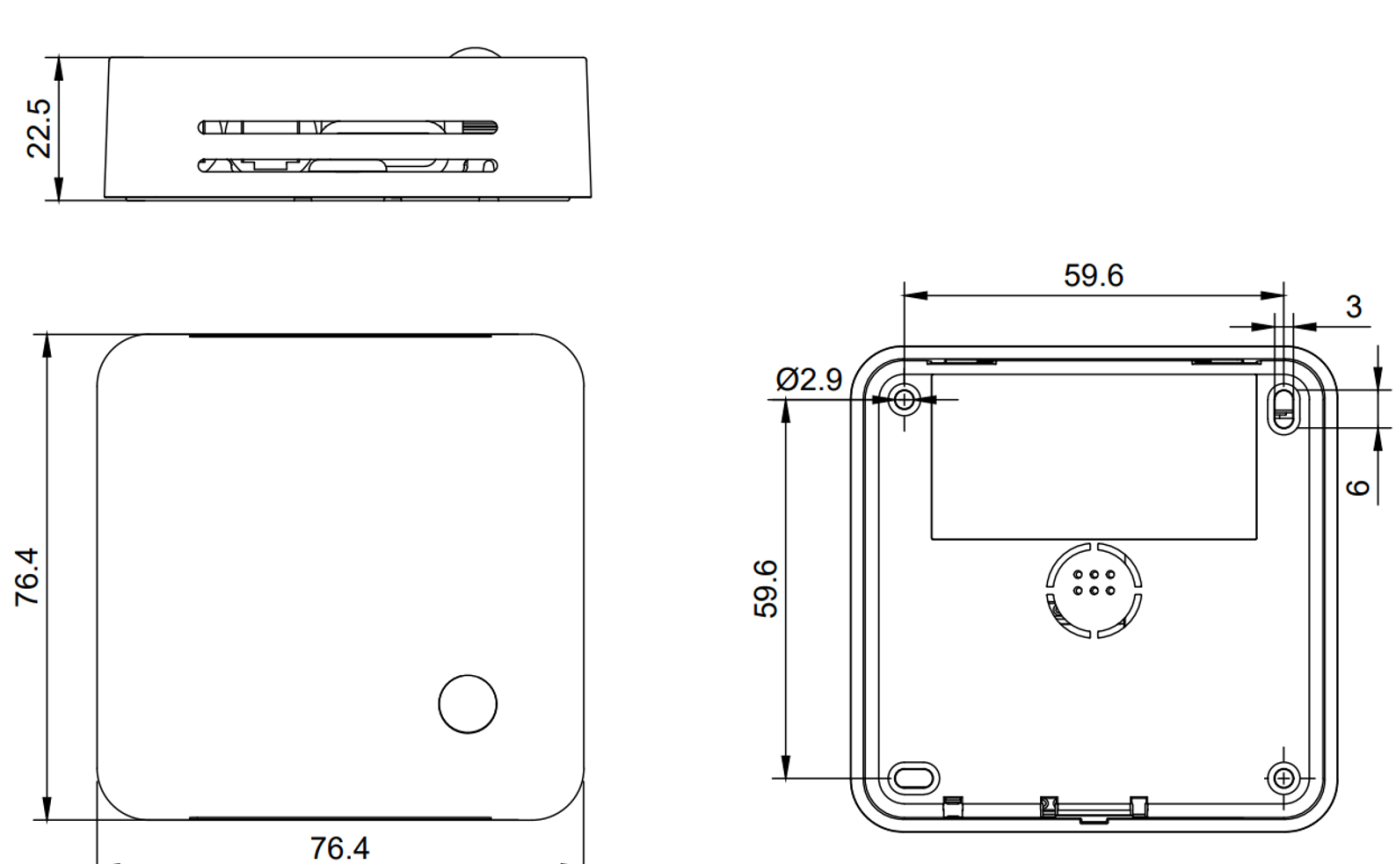

Dimensions

Table 6. Electrical connections

Table 7. Environmental specifications

Type	Value
Usage environment	Indoors
Operating temperature	0 – 50 °C
Operating humidity	0 – 85 % RH, no condensation
Operating light	0 – 65 535 lux
Motion PIR	Motion detection range
Operating CO₂	400 – 10 000 ppm
Occupancy	0, Unoccupied 1, Occupied (motion) 2, Occupied (heat signatures)
Sound level average value range	32 – 75 dBspl
Sound level peak value range	59 – 99 dBspl
Pollution degree	Degree 2

Table 8. User interface

Type	Value
LED light	Activation
App support	Elvaco OTC (using NFC)

Table 9. M-Bus slave interface

Table 10. Wireless M-Bus

Table 11. Conformity
