Product overview


  • IoT-ready

    As soon as the meter connectivity module has been mounted and started up, it will automatically initiate transmission of meter data without any manual steps needed. The CMi6110 is prepared for seamless integration with all leading IoT platforms. It utilizes standards such as LWM2M, MQTT-SN and SenML-CBOR for fast and easy integration.

  • Battery or mains supply operated

    CMi6110 has several options for power supply. It can be battery operated for up to 10 years with daily transmission of meter data.

  • One-Touch Commissioning

    The product uses the Elvaco One-Touch Commissioning (OTC) to configure and deploy products quickly and securely. Using the Elvaco OTC App, simply enter your desired settings and place your mobile phone on the right side of the UH50 meter/UC50 calculator. New settings will be applied instantaneously via NFC.

  • Flexible message scheme

    CMi6110 has different message formats to choose from, which makes it easy to setup the device for your specific project.


CMi6110 is compatible with all L+G UH50 meter and L+G UC50 calculators with a compatible firmware version. Once the module is mounted and starts up, a compatibility check is made to ensure that it is compatible with the meter firmware. If the module is mounted in an incompatible meter, this is indicated in the OTC App.

CMi6110 can be supplied by using one of the following PSUs: Elvaco’s 230V CMip2110 or Landis+Gyr: WZU-110/AC230-xx, WZU-ACDC24-50 or battery WZU-NB-IoT-BAT.

The following table shows the minimum firmware versions required.

Table 1. CMi6110 - Meter firmware compatibility


Minimum firmware version

L+G UH50


L+G UC50


Parts overview


CMi6110 front

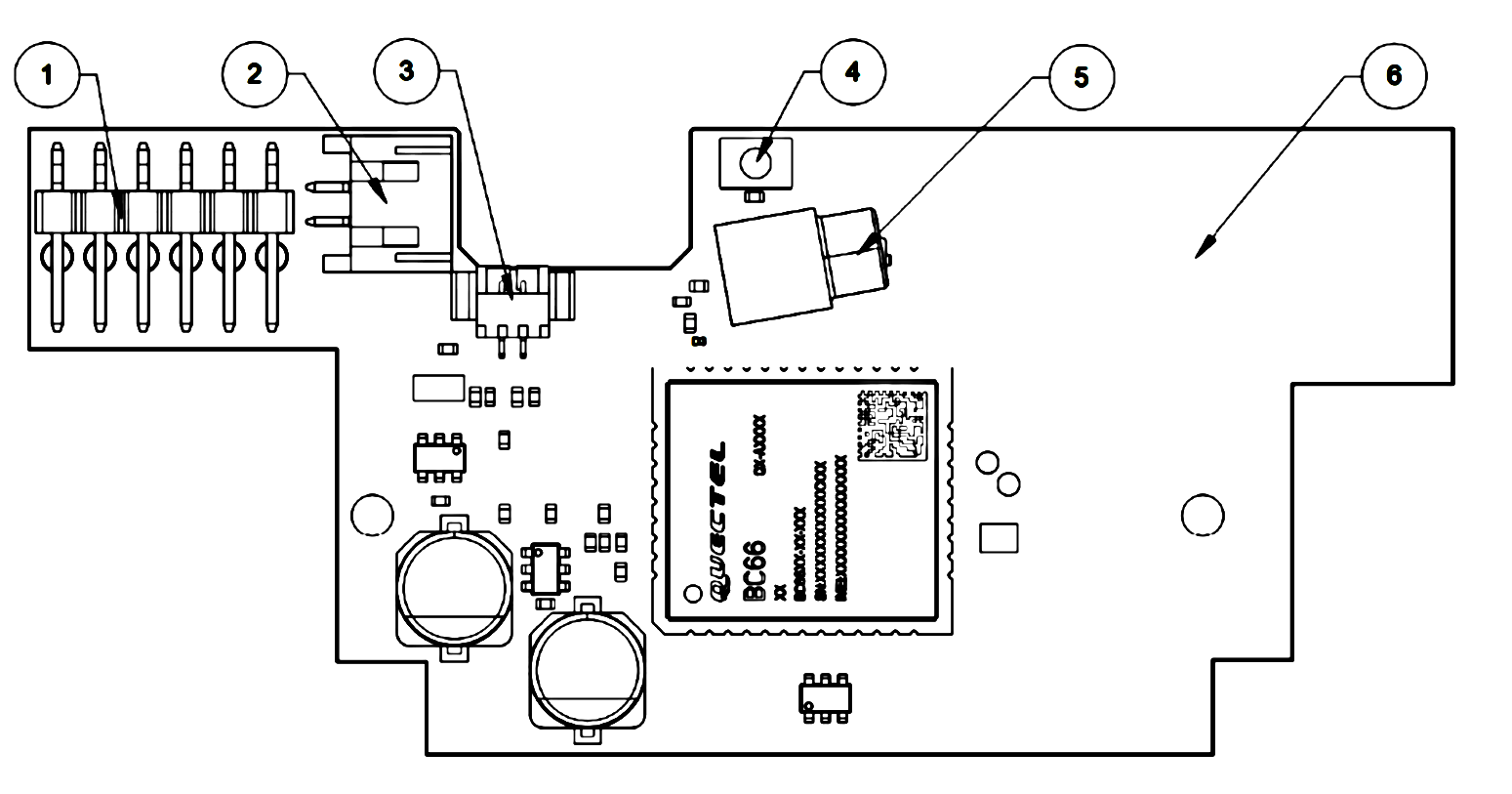

CMi6110 back

  1. Meter Interface

  2. PSU Power Connector

  3. Battery Power Connector

  4. Push Button

  5. Antenna Connector (MCX female)

  6. NFC Antenna

  7. SIM card holder

  8. Green LED

  9. Red LED
